Ventilation system
Regel-air® FORTE

for high air flow rates

Window rebate vents PVC window

Ventilation system
Regel-air ® FORTE

For high air flow rates

View products

Regel-air® FORTE ventilation system for high air volumes

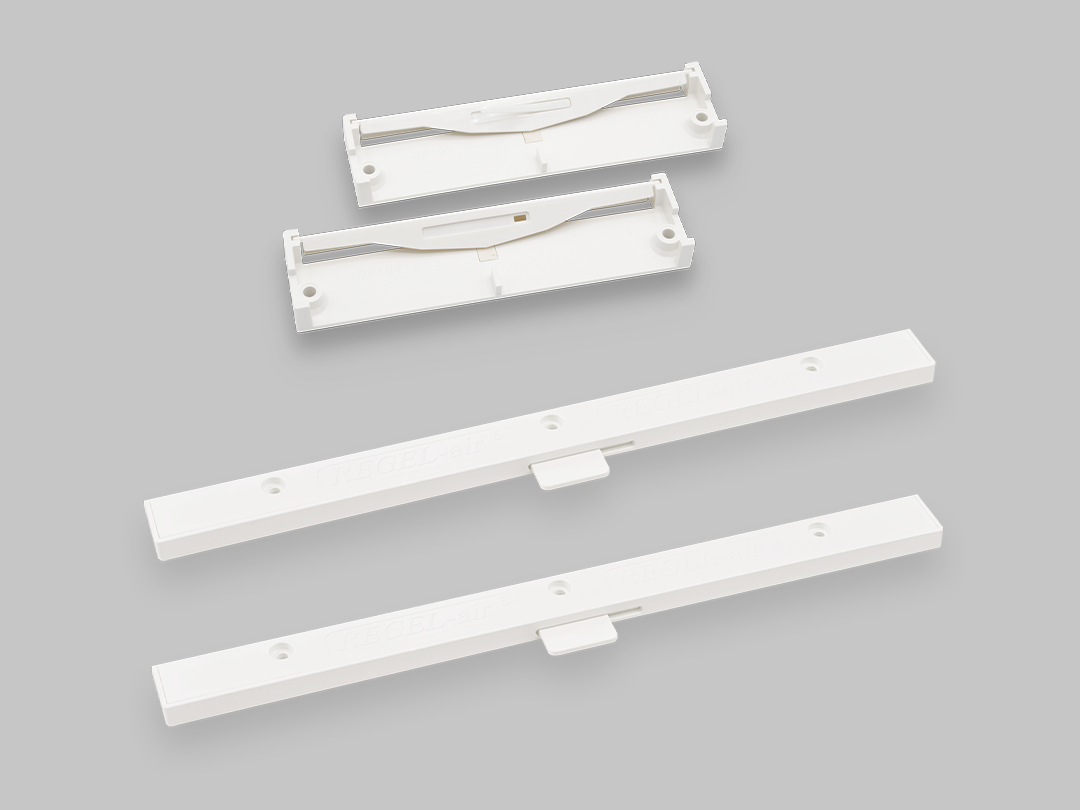

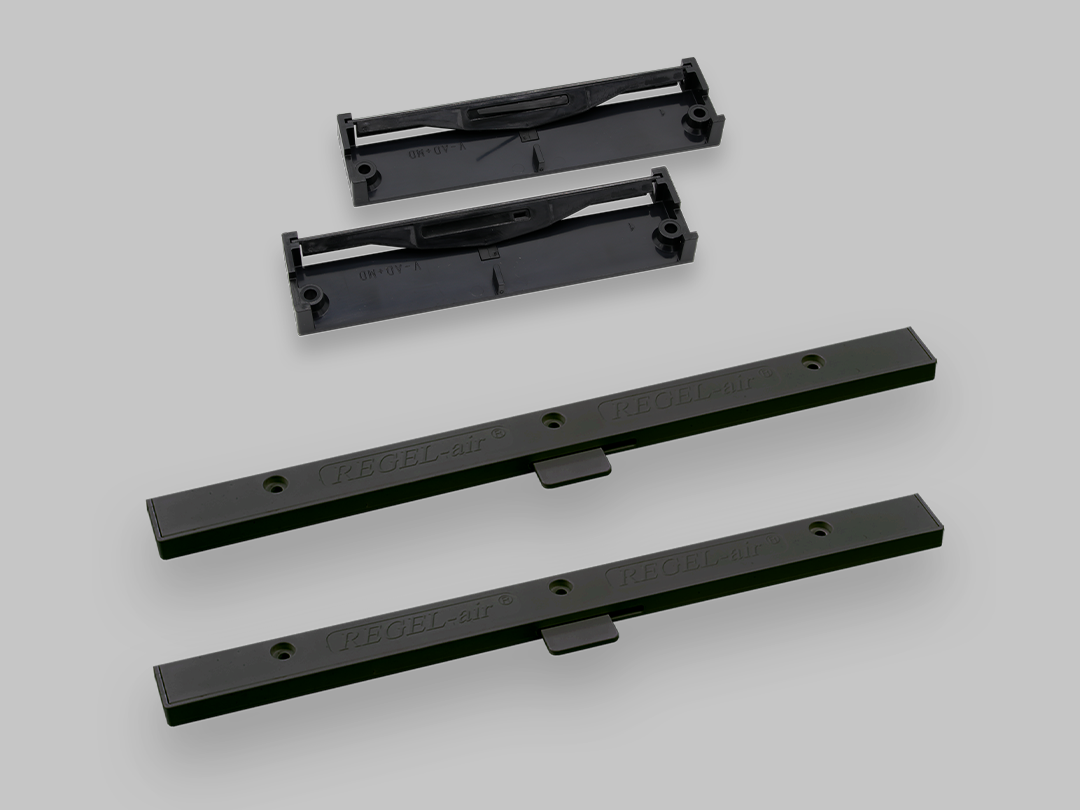

The Regel-air® FORTE ventilation system combines one pair each of manually infinitely adjustable slide vents Regel-air® SL and window rebate vents Regel-air® FFL units with automatic airflow control.

As an automatic ventilation system, the window rebate vents ensures the necessary minimum air exchange at all times. The slide vent SL can be operated as required. With the FORTE ventilation system, air intake takes place entirely at the top of the window. Using the Regel-air® FORTE, over 20 m³/h of air can be transported per window sash without opening the window. Even when used in conjunction with extract ventilation systems, the Regel-air® FORTE ventilation system is ideally suited to high air flow rates.

Reducing energy costs in the long term

Lower humidity = lower heating costs! Ventilation using Regel-air® window rebate vents reduces the relative humidity in the flat.

This has been proven to reduce heating costs. It also prevents mould growth and improves indoor air quality.

Find out more

Stop gasket Technical specifications

Product data sheet Air permeability values Sound insulation values Installation instructions tender document Installation video

Centre gasket Technical specifications

Product data sheet Air permeability values Sound insulation values Installation instructions tender document Installation video

Features

Extremely easy to use
Installation of the window vent without the need for milling
Purely mechanical operation
No additional power supply required
Performance tested in accordance with DIN EN 13141-1
Approved in accordance with EnEV and DIN 1946-6

Areas of application

For achieving the minimum air change rate in accordance with the EnEV
As a comfort ventilation system for both proven moisture protection and high air requirements
Vents to achieve the required air flow rates in accordance with DIN 1946-6: ventilation for moisture protection, reduced ventilation and nominal ventilation
Vents to prevent and combat the causes of mould growth due to excessive humidity
As an external air inlet in conjunction with shaft ventilation or extract air systems
As an external air inlet within the cross ventilation, taking into account the principles of building physics

Home ventilation can be that simple

Find out more

Regel-air® System FORTE

Product data overview Regel-air® vents FORTE system

Suitable for:	All PVC windows in accordance with our → type list
Width of 1 pair of window rebate vents (= 2 vents): Dimensions per slide vent:	250 mm 293 x 21 x 9.5 mm (WxDxH, housing)
Air control window rebate vents FFL: Air control slide vent SL:	Automatic, volume flow-dependent manual, infinitely variable
Achievable air flow rates in the range 2 to 8 [Pa]:	3.0 to 20.0 [m³/h] and above
Resistance to driving rain in accordance with DIN 12 208:	Tested in accordance with DIN EN 13141-1, Table 6
Achievable noise protection (depending on glazing type and combination of vents):	Noise protection on request
Ventilation elements per window sash:	1 pair of slide vent SL + 1 pair window rebate vents FFL with return spring

How it works and fresh air supply

Find out more

Videos

Areas of application

Find out more

Do you have any further questions?

We’re happy to help.

Our staff answer lots of questions every day about window rebate vents and ventilation. Here you’ll find answers to questions we’re frequently asked.
If you have any further questions, please feel free to contact us.
