Regel-air® ventilation system FFL – for precisely controlled air flow rates
The Regel-air® window rebate vent FFL is installed concealed in the upper, non-condensing area of the windows. When the window is closed, the ventilation system is not visible from either the inside or the outside.
As wind pressure increases, the system’s ventilation flaps close automatically. This prevents draughts. The ventilation flaps open again automatically as soon as the wind pressure decreases. This ventilation system operates automatically, is purely mechanical and requires no electricity.

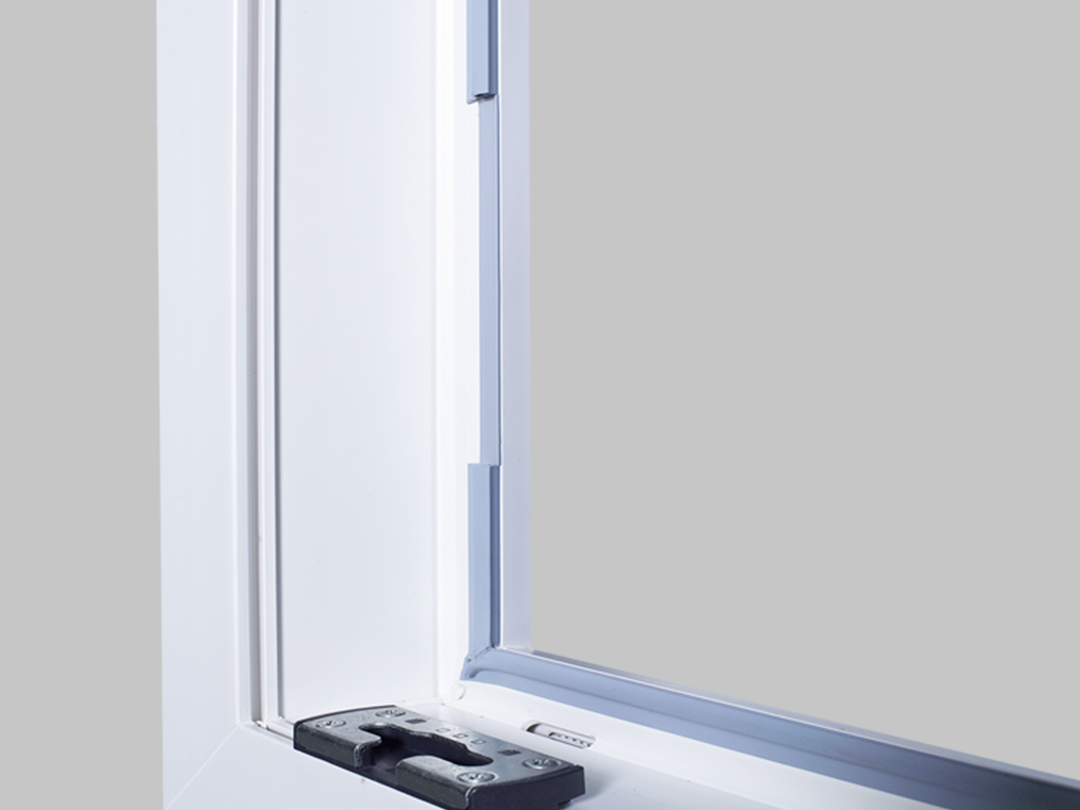

Stop gasket Technical specifications

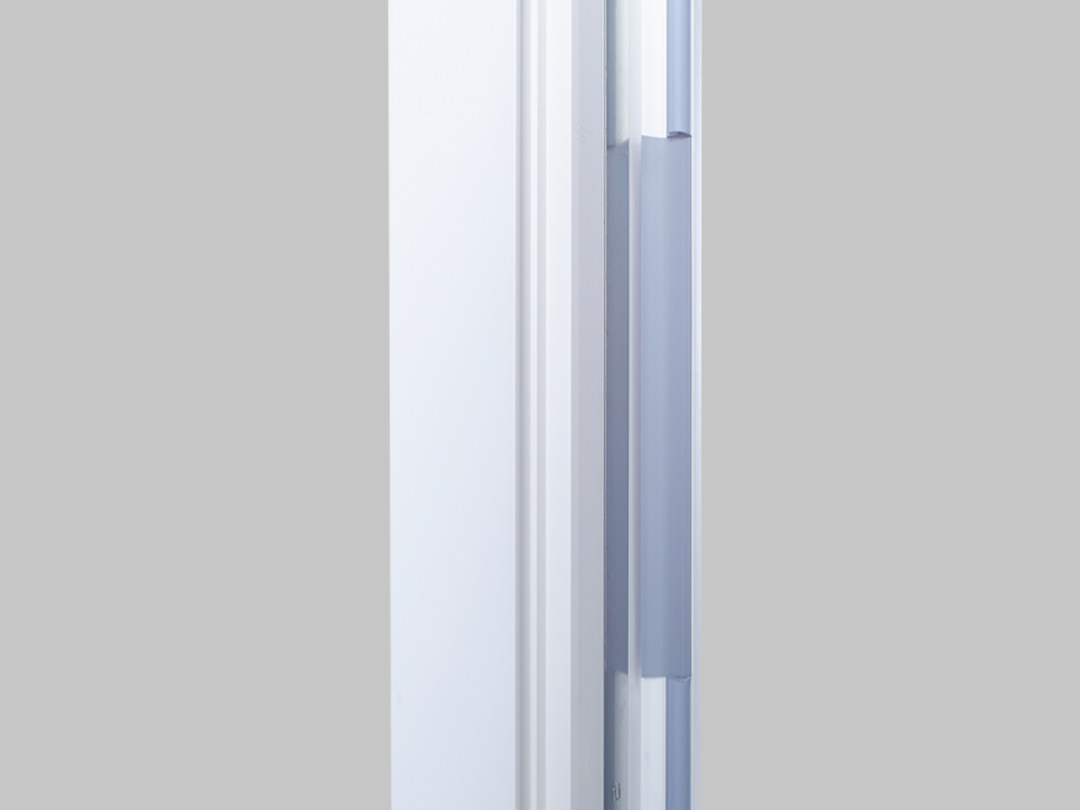

Centre gasket Technical specifications
Features
- Window ventilation system for moisture control
- Purely mechanical operation
- User-independent and tamper-proof
- No additional power supply required
- Air permeability classification in accordance with DIN EN 1026 and DIN EN 12207 class 3
- Driving rain proof in accordance with DIN EN 1027 and 12208 up to 600 Pa
- Performance tested in accordance with DIN EN 13141-1
- Approved in accordance with EnEV and DIN 1946-6
Areas of application
- As a ventilation system for moisture control in new and existing buildings
- To prevent and tackle the causes of mould growth
- As external air inlets in conjunction with shaft ventilation or exhaust air systems
- For moisture removal as part of the cross ventilation (moisture control system), taking into account the principles of building physics
- Suitable for the combustion air supply of fireplaces
Home ventilation can be that simple
Find out moreRegel-air® System FFL
Product data overview Regel-air® window rebate vent FFL Type RF
| Ventilation system suitable for: | All PVC windows models according to our → model list |
|---|---|
| Width of 1 pair of window rebate vents (= 2 vents): | 250 mm |
| Width of a single vent: | 125 mm |
| Airflow control: | Automatic, flow-dependent |
| Achievable air flow rates in the range 2 to 8 [Pa]: | Depending on the vent combination (min. 1 pair) 3.0 to 7.8 [m³/h] |
| Permissible limit value in accordance with DIN EN 12207-4.4: | At 100 Pa: 9.00 [m³/hm²] |
| Classification in accordance with DIN EN 1026 and DIN EN 12207: | Class 3 |
| Resistance to driving rain in accordance with DIN 12208: | No water ingress up to a maximum test pressure of 600 Pa |
| Achievable sound insulation (noise protection) (depending on the type of glazing): | Up to 42 dB (up to class 4) |
| Special notes: | Supplied with all specific gaskets |
