Window rebate vents FFL Type 17 RF
Contents: 2 vents per sales unit, including gasket
Product information " Window rebate vents FFL Type 17 RF"
The Regel-air ventilation system ® FFL Type 17
Our Regel-air ventilation system FFL Type 17 is an automatic, self-regulating window rebate vents. It is made of PVC and features automatic airflow limitation. This makes it very easy to prevent damp and mould damage. The pressure difference prevailing on the building is utilised to ensure automatic air exchange and the supply of fresh air to all rooms. Fresh outside air simply flows into the interior of the room through the Regel-air ® FFL window rebate vents.

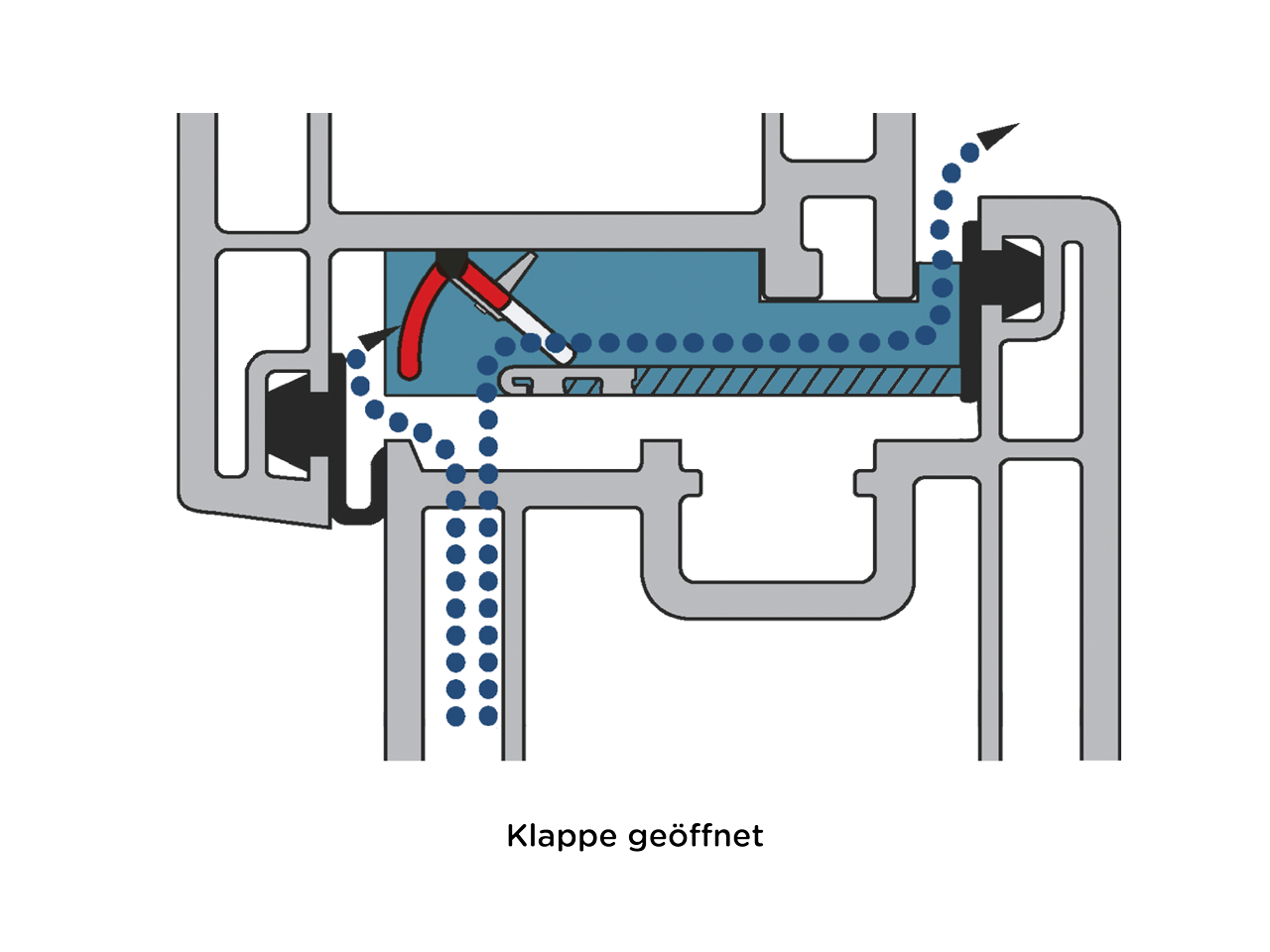

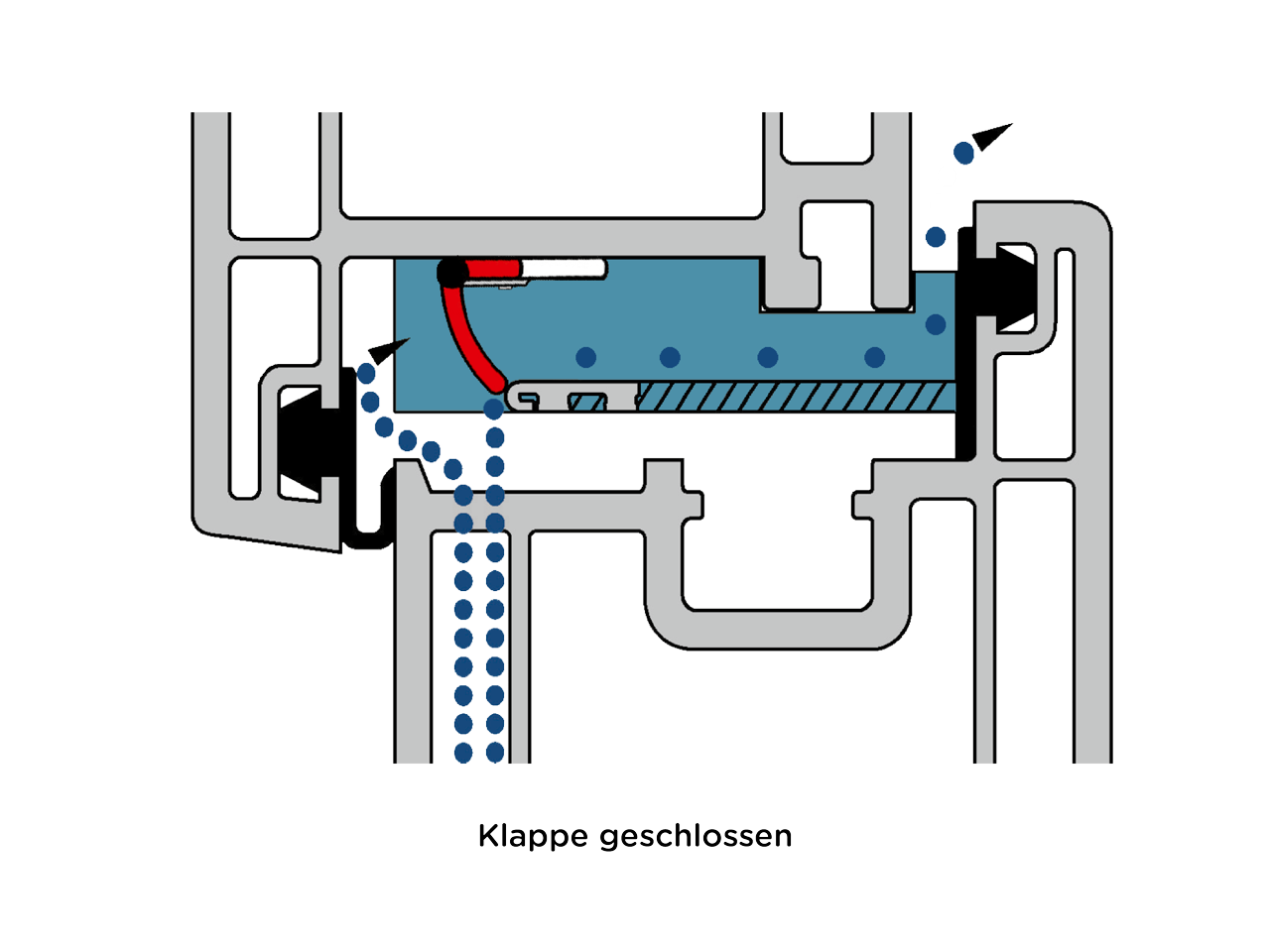

To prevent draughts, the ventilation flaps automatically close when wind pressure increases. Controlled air exchange is guaranteed when the system is installed correctly.
The FFL ventilation systems operate on a purely mechanical principle. No power supply is required for this energy-efficient ventilation.
We recommend fitting every room with Regel-air ® ventilation systems. This ensures that the entire flat is reliably ventilated.
Suitable for the following window systems:
Alphacan: Alpha Prestigio II, Alpha Prestigio-Luce, In Alpha70
Deceuninck: Zendow 70 AD, Elegante (Inoutic)
Gealan: S 3000 62 AD, S 6000 MD, S 7000 IQ 74 MD, S 8000 IQ 74 AD, S 7000 IQ Plus, S 8000 IQ Plus, S 9000 (74/83), Linear
Iller Plastic: TREND 76
KBE (Profine): 58 AD
Panorama: PA 3005 75 MD
Profalis: Performance 72 AD
Rehau: S 796 AD, Geneo, Euro Design 86 plus, Synego
Rekord: Quadro Life 80 AD+MD, Quadro Blue 86 MD
Roplasto: 6002 58 AD, 7001 68 AD, 7001 68 MD, 7001 80 AD, 7001 80 MD, Swingline
Tryba: T 70 D (AD), T 84 (MD)
Unilux: IsoPlus (MD) 76, IsoStar (MD) 88
Weru: CASTELLO-plus 76 AD/MD, Smartline, Thermico, AFINO-one, AFINO-tec
KBE (Profine): 58 MD, 70 AD, 70 MD, 48 AD, 88 mm AD/MD, 76 AD
Kömmerling (Profine): 76 AD, 88 MD (2016)
Trocal (Profine): 76 AD, 88 MD (2016)
| Achievable air flow rates in the range of 2 to 8 Pa: | Depending on the vent combination (at least 1 pair), 3.0 to 7.8 m³/h |
|---|---|
| Air control: | Automatic, flow-dependent |
| Classification in accordance with DIN EN 1026 and DIN EN 12207: | Class 3 |
| Contents of the package: | Supplied with all the necessary seals and fitting materials |
| Installation: | Retrofitting, factory-fitted |
| Noise protection achievable (depending on the type of glazing): | Up to 42 dB (up to Class 4) |
| Permissible limit value in accordance with DIN EN 12207-4.4: | At 100 Pa: 9.00 m³/hm² |
| Resistance to driving rain in accordance with DIN 12208: | No water ingress up to a maximum test pressure of 600 Pa |
| Vents per sales unit: | 2 pieces |

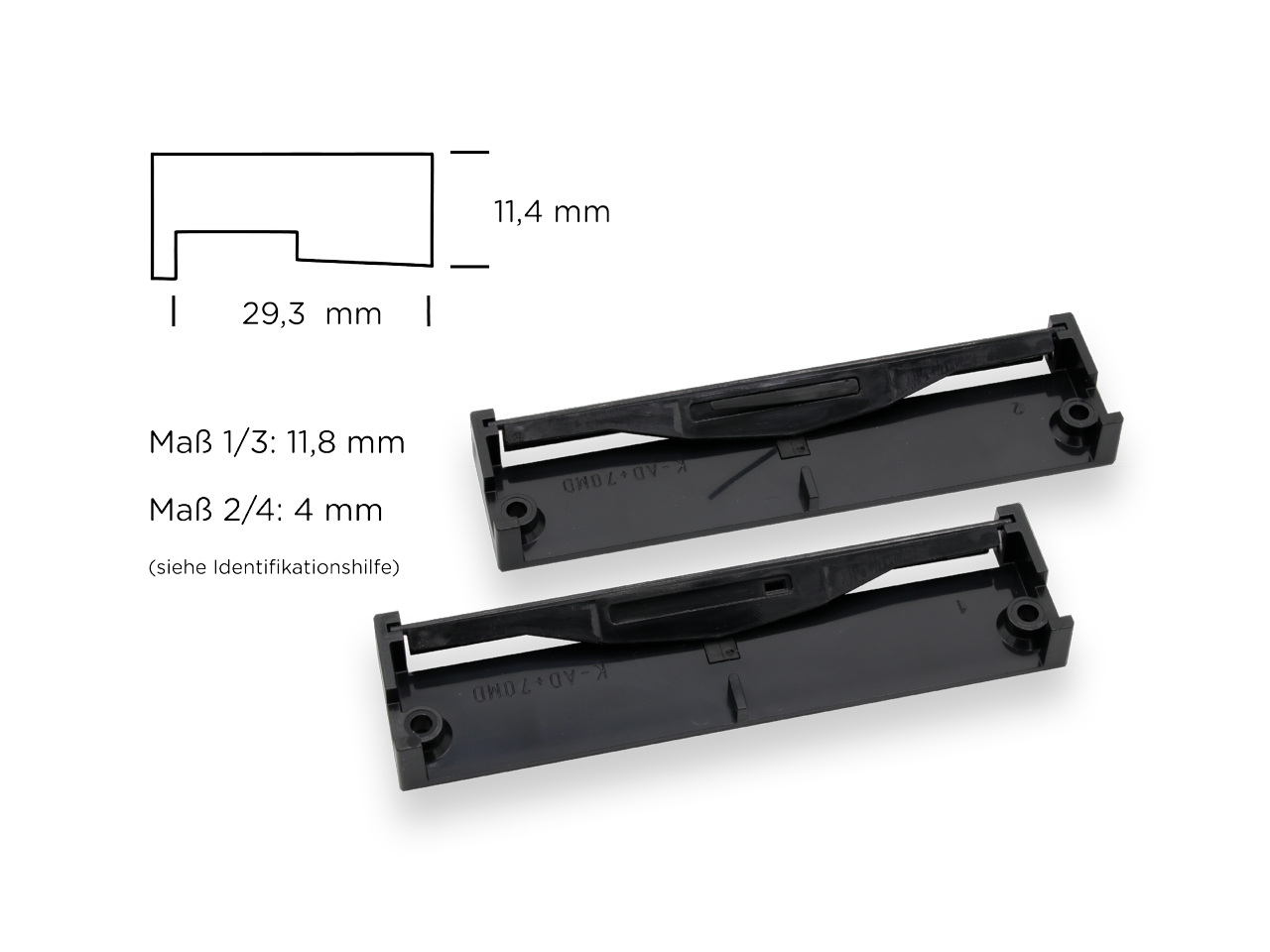

| Wide single fans: | 125 mm |
| Width: 1 pair of window rebate vents FFL (=2 fans): | 250 mm |
| Window material: | PVC window |
