Regel-air ® FFLH – window rebate vent for wood and wood-aluminium windows

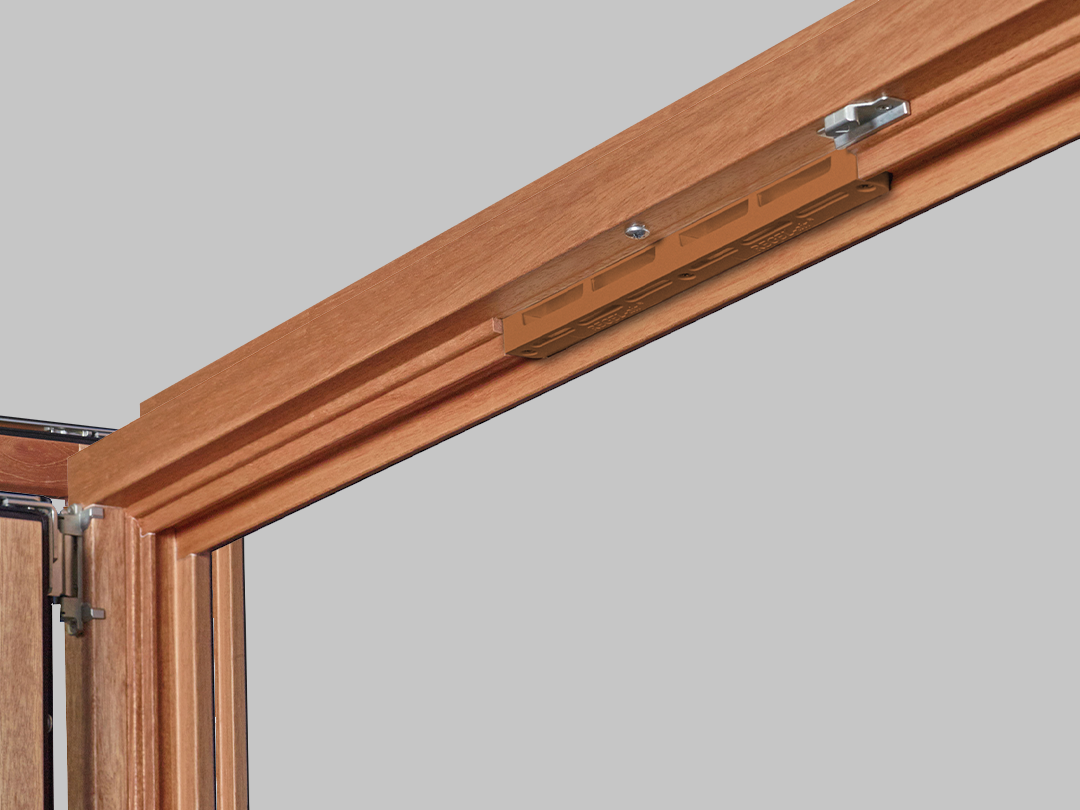

The basis for the vents Types 24 and 14 is the classic Regel-air ® FFL. The window rebate vents are fitted into a housing for timber and timber-aluminium windows, which is milled into the window’s frame. The advantage of this installation method is that the centre gasket is fully preserved during sash. The flaps in the ventilation modules react to wind pressure in exactly the same way as in the FFL ventilation system and close as wind pressure increases.
To ensure the minimum air change rate is achieved in special constructions, such as arched windows, the ventilation systems can also be fitted vertically. A return spring in the flaps of the window rebate vents ensures that the flaps open again automatically after closing.

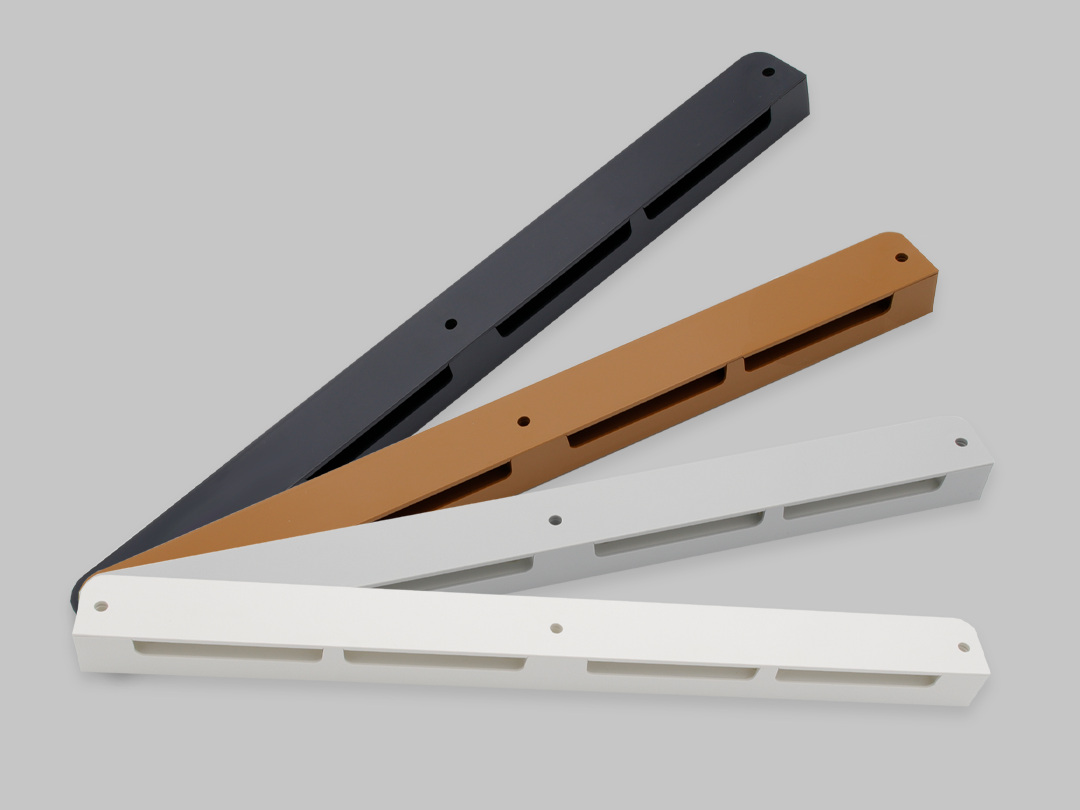

The Regel-air ® window rebate vents FFLH Type 24 is available in white, light grey, clay brown and anthracite.
Features
- For a reliable minimum air exchange rate to protect against moisture in wood and wood-aluminium windows
- To prevent moisture damage and mould growth
- For standard and enhanced sound insulation requirements
- Purely mechanical operation; no additional power supply required
- Air permeability classification in accordance with DIN EN 1026 and DIN EN 12207 4.4, 4.5 and 4.6: class 3
- Driving rain proof in accordance with DIN EN 12208 up to 600 Pa
- Performance tested in accordance with DIN EN 13141-1
- Approved in accordance with EnEV and DIN 1946-6
Areas of application
- Vents for moisture control ventilation in new buildings and existing buildings
- Ventilation system for retrofitting in existing windows
- User-independent and tamper-proof
- To prevent and tackle the causes of mould growth
- As an external air inlet in conjunction with shaft ventilation or extract air systems
- For moisture removal as part of the cross ventilation system, taking into account the principles of building physics
- For the combustion air supply of fireplaces
- Suitable for both factory installation and retrofitting to existing windows
Home ventilation can be that simple
Find out moreRegel-air® system FFLH Types 14 and 24
Product data overview: Regel-air® window rebate vents FFLH Types 14 and 24
| Suitable for: | All wood and wood-aluminium window types IV 68 to IV 98 |
|---|---|

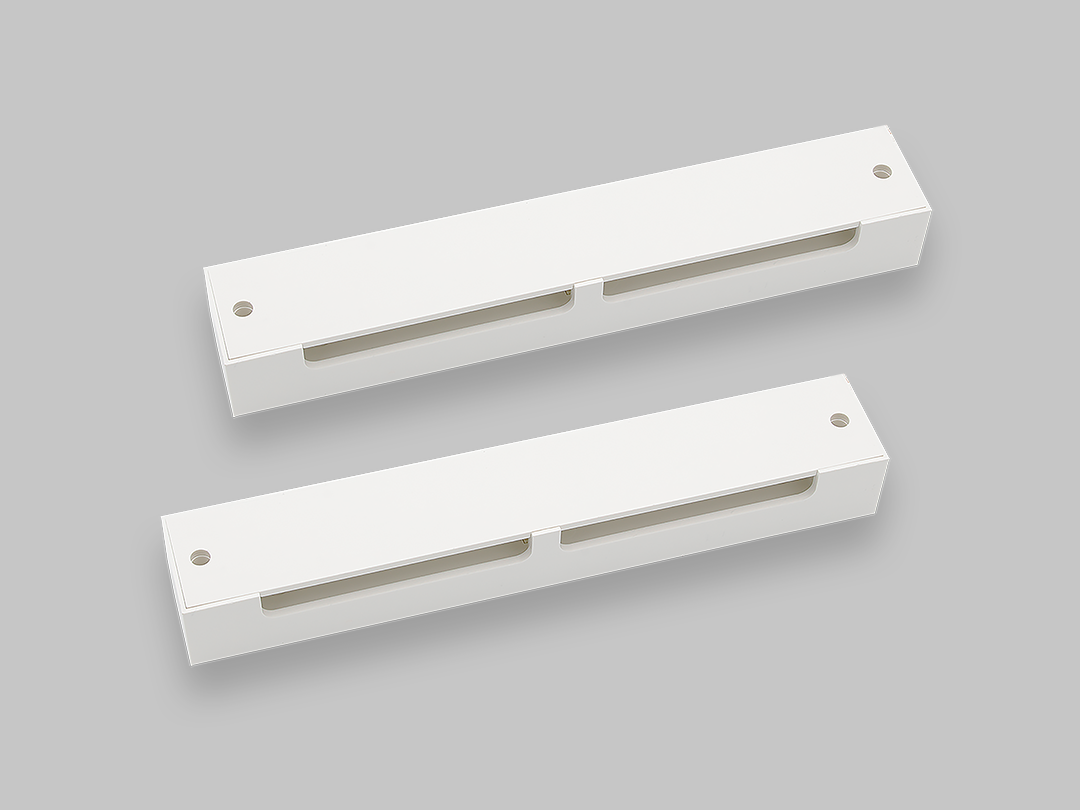

| Dimensions of vents pair (= 2 vents Type 14): | 298 x 25 x 19 mm (WxDxH) |

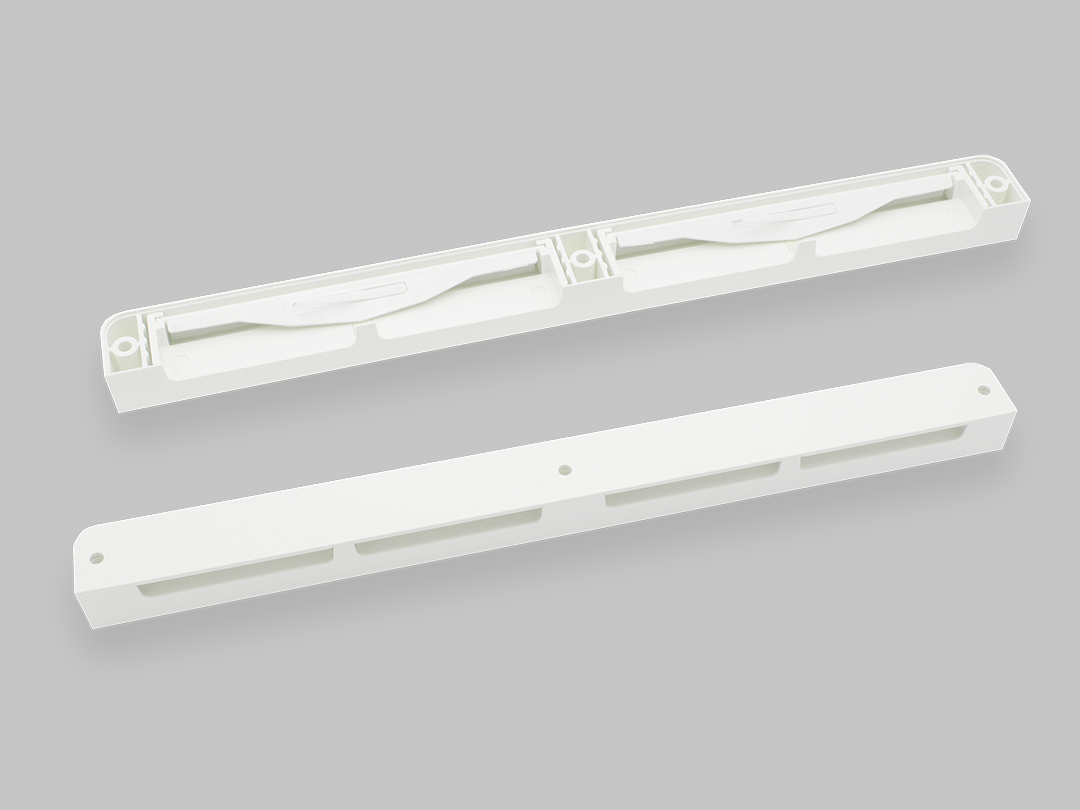

| Dimensions of the vent with an 8 mm radius (Type 24): | 290 x 24 x 19 mm (WxDxH) |
| Air control: | Automatic, flow-dependent |
| Achievable air flow rates in the range 2 to 8 [Pa]: | Depending on the vent combination, from 2.1 to 9.4 [m³/h] |
| Permissible limit value in accordance with DIN EN 12 207-4.4: | At 100 Pa: 9.00 [m³/hm²] |
| Classification in accordance with DIN EN 1026 and DIN EN 12 207: | Class 3 |
| Resistance to driving rain in accordance with DIN 12 208: | No water ingress up to a maximum test pressure of 600 Pa |
| Achievable sound insulation ( noise protection) (depending on the type of glazing): | Up to 42 dB (up to class 4) |
