Ventilation system Regel-air® FFL-uni

for medium air flow rates

Window rebate vents For all window materials

Ventilation system Regel-air ® FFL -uni

For medium air flow rates

View the products

Regel-air ® ventilation system FFL-uni – One for all

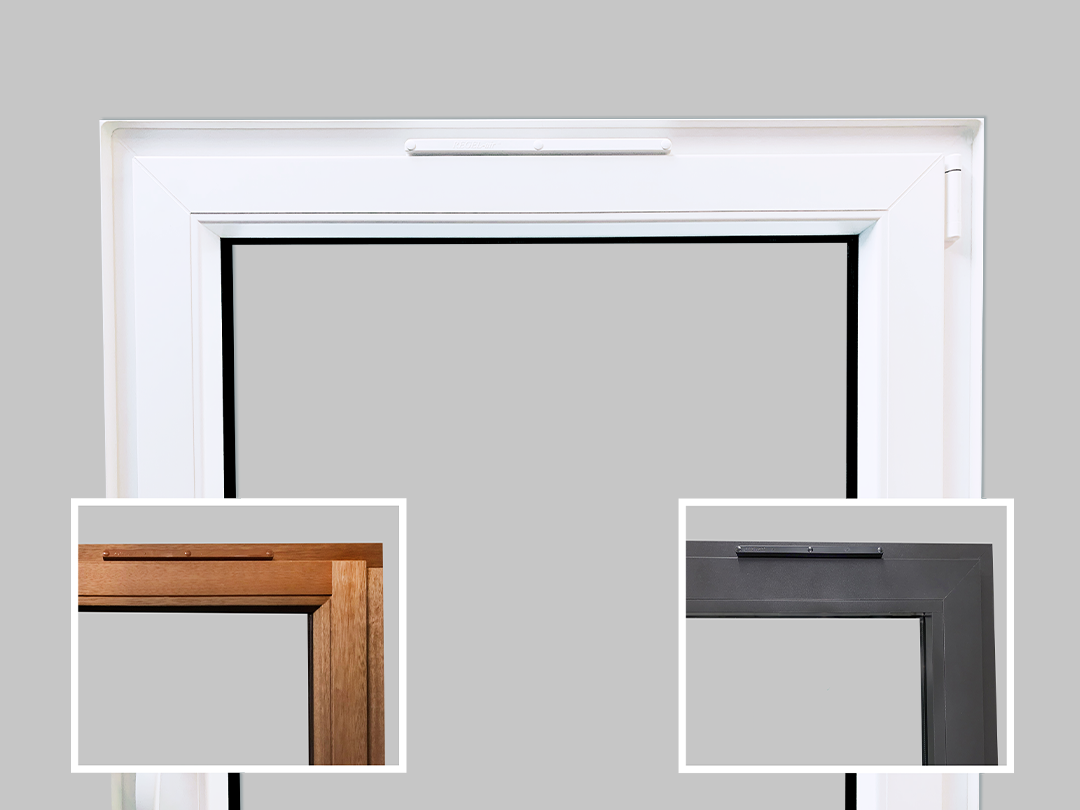

The universal vent for PVC, wood, wood-aluminium and aluminium windows

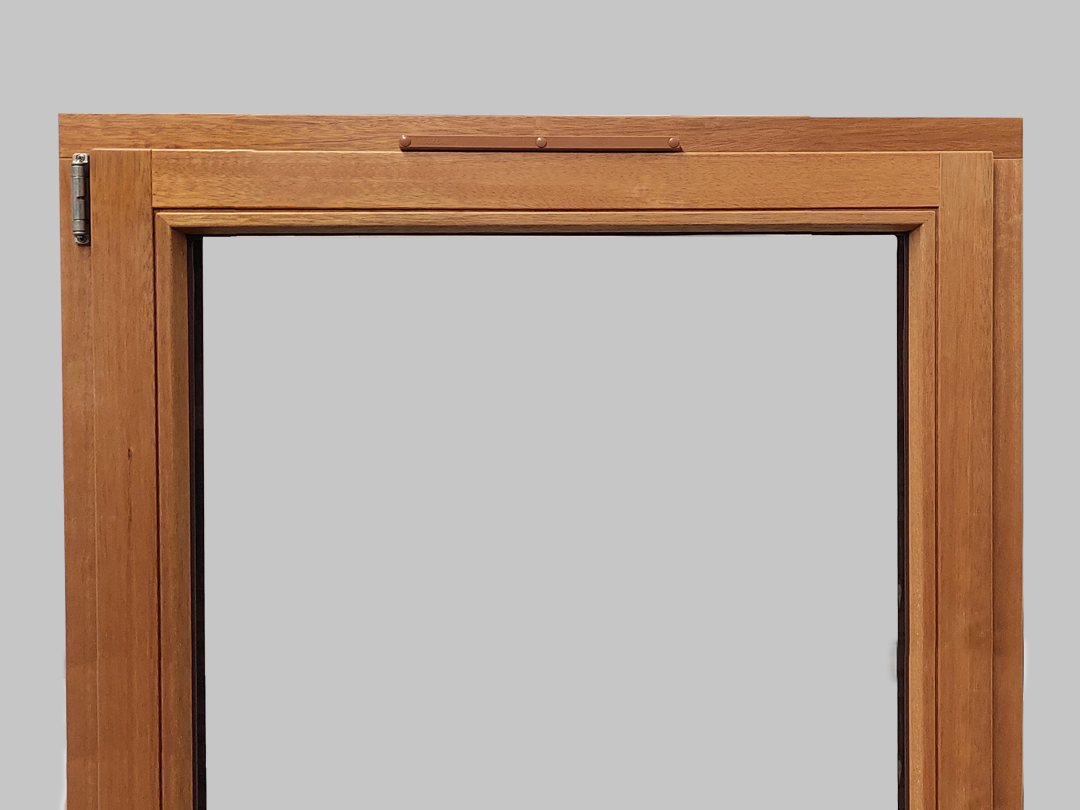

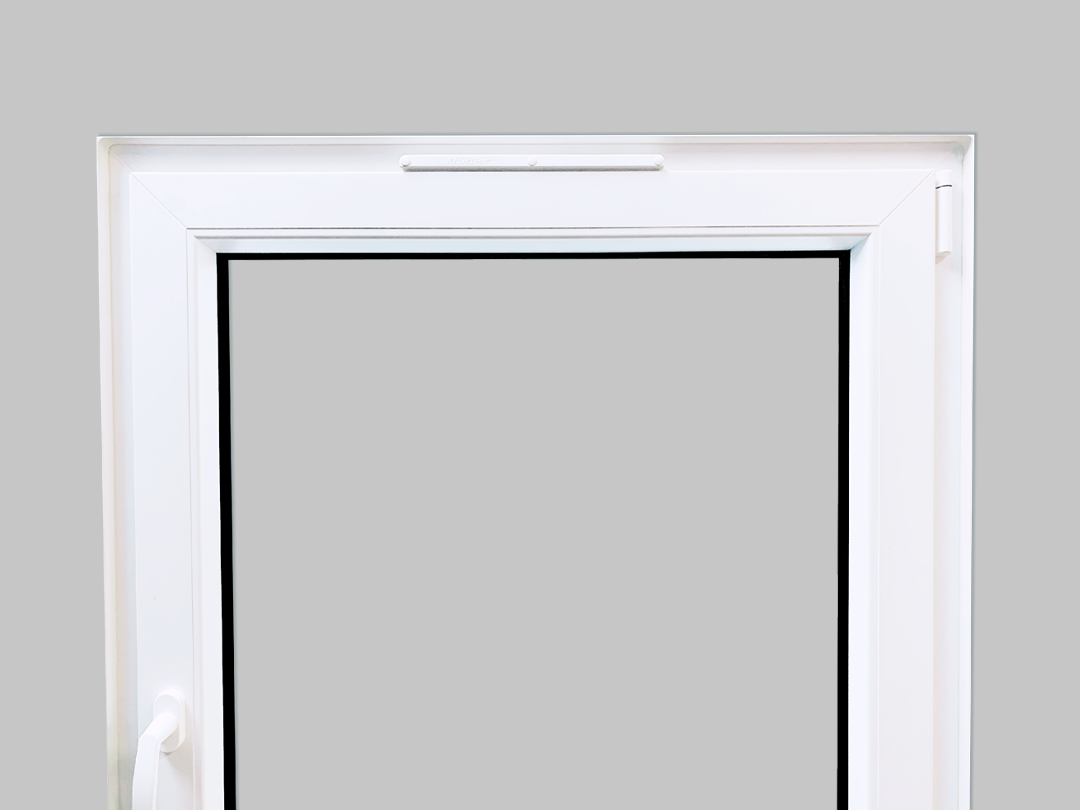

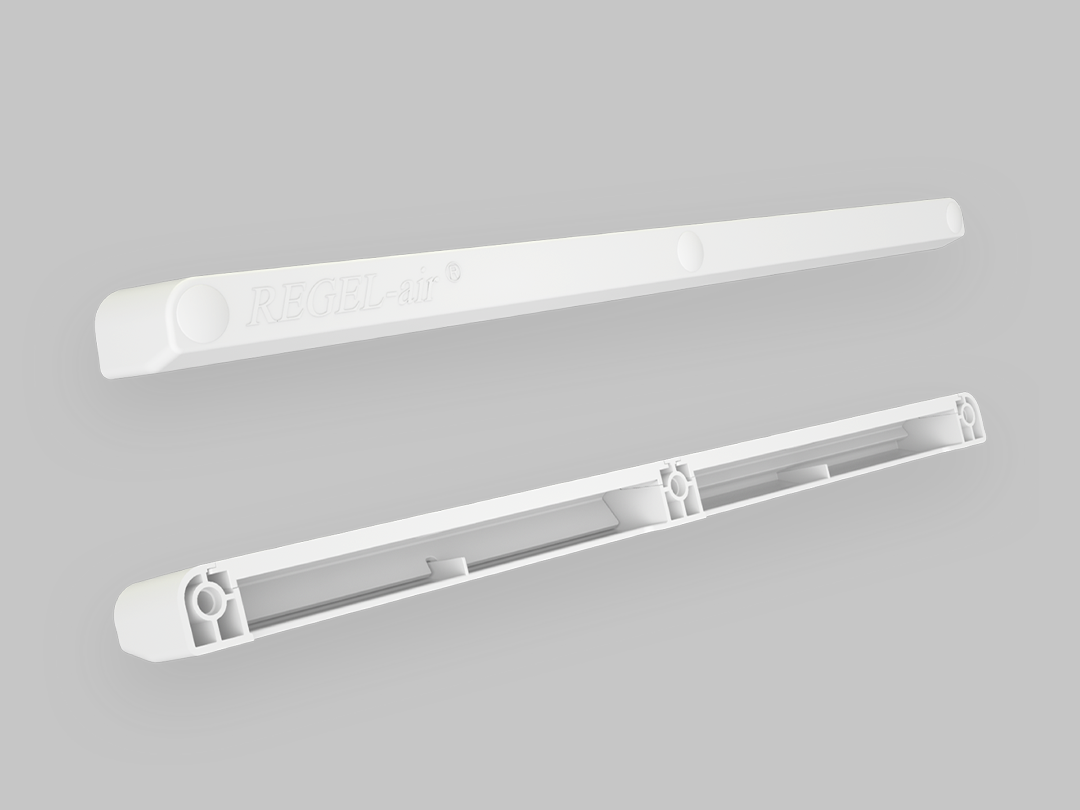

The Regel-air® FFL-uni is a self-regulating window rebate vent, which is suitable for factory installation but is also ideal for retrofitting. The FFL-uni fits virtually all windows and window types (with the exception of flush-fitting windows). The window rebate vent features two self-regulating flaps, which regulate the airflow depending on wind pressure to prevent draughts. The Regel-air® FFL-uni is screwed onto the upper window frame using a drilling and cutting template.

Using the FFL-uni enables controlled air exchange and reliable dehumidification without draughts. To achieve this, the entire flat should be taken into account.

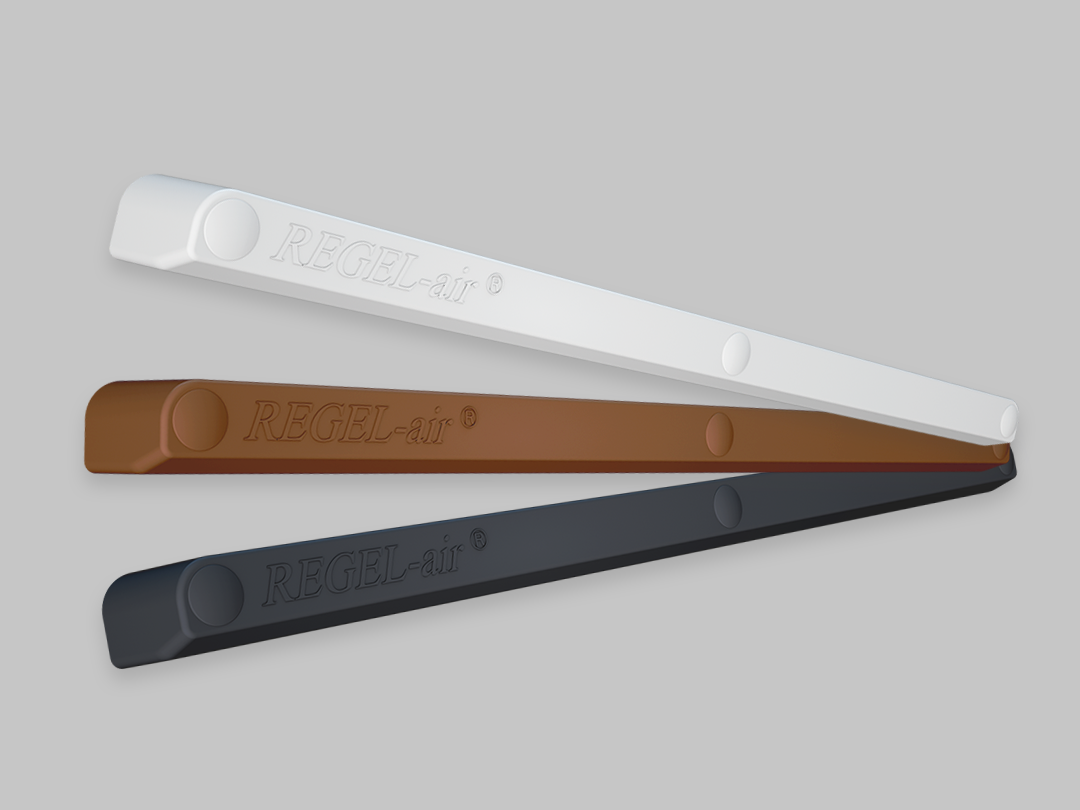

The Regel-air® FFL-uni is available in white, clay brown and anthracite.

Reducing energy costs in the long term

Lower humidity = lower heating costs! Ventilation using Regel-air® window rebate vents reduces the relative humidity in the flat.

This has been proven to reduce heating costs. It also prevents mould growth and improves indoor air quality.

Find out more

Technical specifications

Product data sheet Performance data Installation instructions tender document Installation video

Features

Suitable for almost all standard windows and window types
Purely mechanical operation
Driving rain proof DIN EN 13141-1
Performance tested in accordance with DIN EN 13141-1
Approved in accordance with EnEV and DIN 1946-6
Suitable for the combustion air supply

Areas of application

As a ventilation system for moisture control in both new and existing buildings
User-independent and tamper-proof
To prevent mould and moisture damage caused by excessively high indoor humidity
For moisture removal as part of the cross ventilation system, taking into account the laws of physics
As an automatic ventilation control system for extract air systems and shaft ventilation
For the combustion air supply of fireplaces and gas boilers. Ideal for the retrofitting of existing windows

Home ventilation can be

that simple.

Find out more

Regel-air® vents system FFL-uni Type 88

Product data overview Regel-air® vent system FFL-uni Type 88

Compatibility	All standard windows and window types
Dimensions W x H x D	269 x 15.2 x 22 mm
Air control	Automatic, volume flow-dependent
Achievable air flow rates	2 to 12.9 m³/h depending on pressure differential and window type
Performance tested	DIN 13141-1
Noise protection achievable (depending on glazing type)	Up to 42 dB

How it works and fresh air supply

Find out more

Videos

Go straight to our products in the shop

Window rebate vents FFL -uni Type 88 white

Vent colour

Window rebate vents FFL -uni Type 88 white

The Regel-air ® FFL -uni is ideal for the retrofitting and is fitted horizontally at the top. Installation is very straightforward thanks to the template supplied.

Please log in to see prices

FFL-uni Installation Guide

The Regel-air ® installation aid for the FFL-uni makes pre-drilling easier in confined spaces between sash and the roller shutter box/lintel.

Please log in to see prices

FFL-uni drilling and cutting template

With the help of the Regel-air ® drilling and cutting template, the FFL-uni can be fitted quickly and easily.

Please log in to see prices

Sample case

The Regel-air ® sample case is ideal for use during on-site customer appointments to help determine the correct window-rebate ventilator.

Please log in to see prices

Areas of application

Find out more

Do you have any further questions?

We’re happy to help.

Our staff answer lots of questions every day about window rebate vents and ventilation. Here you’ll find answers to the questions we’re most frequently asked.
If you have any further questions, please feel free to contact us.

FAQ

Made in Germany

Europe-wide delivery

Over 25 years in business
