Regel-air® window rebate vents for wood and wood-aluminium windows
Regel-air® FFLHA Type 23 is a ventilation system that responds automatically to wind pressure for wood-aluminium windows. In wood-aluminium windows, the Regel-air® window rebate vents are to be used exclusively as supply air devices in conjunction with permanently operated fan-assisted extract ventilation systems.
They are available in two versions:
DThe first option is the Regel-air® FFLHA Type 23 ventilation system for wood-aluminium systems with a centre gasket in the frame.
The second option is the Regel-air® FFLHA ventilation system, types 24 and 44 , for wood-aluminium systems with a centre gasket in the window sash.
The basis for these window vents is the classic Regel-air® FFL. The window rebate vents are fitted into a housing in wood/wood-aluminium windows, which is milled into the window’s frame. The advantage of this installation method is that the centre gasket in the sash remains completely intact. The flaps in the ventilation modules respond to wind pressure in exactly the same way as in the FFL ventilation system and close as wind pressure increases.
To ensure the minimum air change rate is achieved in special designs, such as arched windows, the ventilation systems can also be fitted vertically. The 14 RF, 23 RF and 24 RF vent models are suitable for this purpose. A return spring in the flaps of the window rebate vents ensures that the flaps reopen automatically after closing.
The window vent system.
Regel-air® FFLH ventilation system – for precisely controlled air flow rates

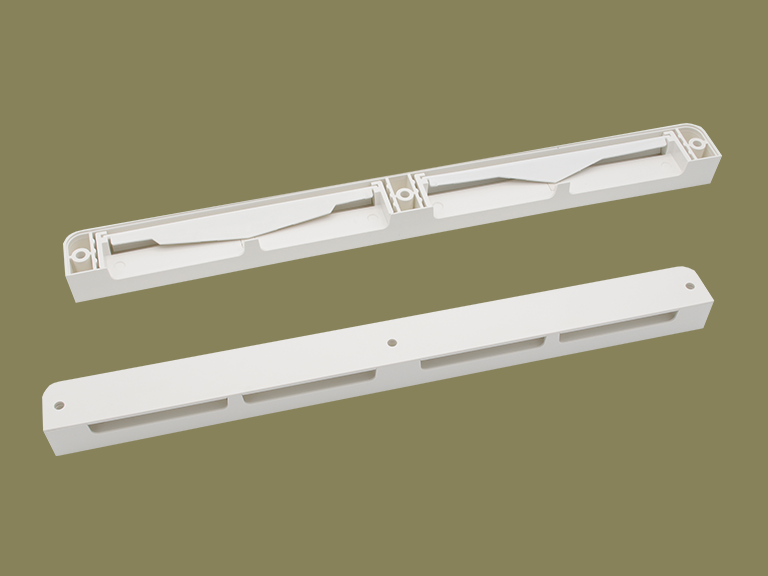

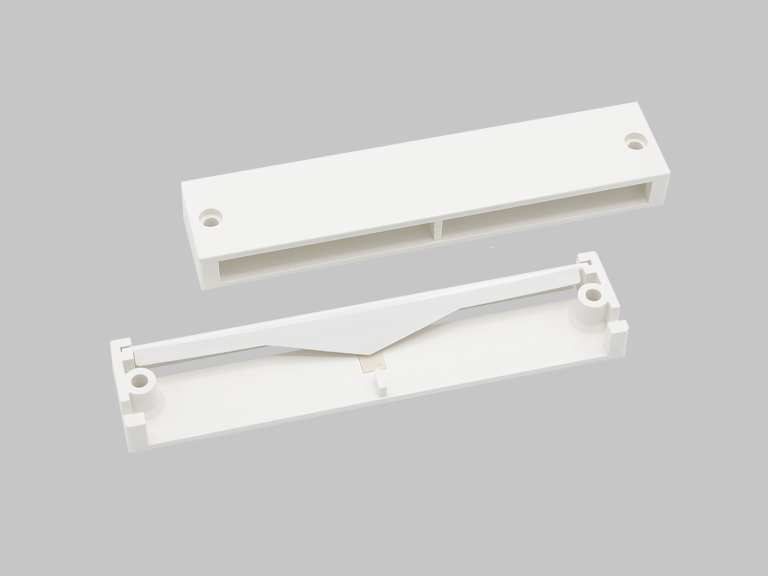

The Regel-air® FFLH window rebate vent for wood and wood-aluminium windows is available for two different applications. The Regel-air® FFLH Type 24 ventilation system is primarily intended for factory installation in new windows. The Regel-air® FFLH Type 14 ventilation system is suitable for retrofitting into existing windows.
Go to the system page

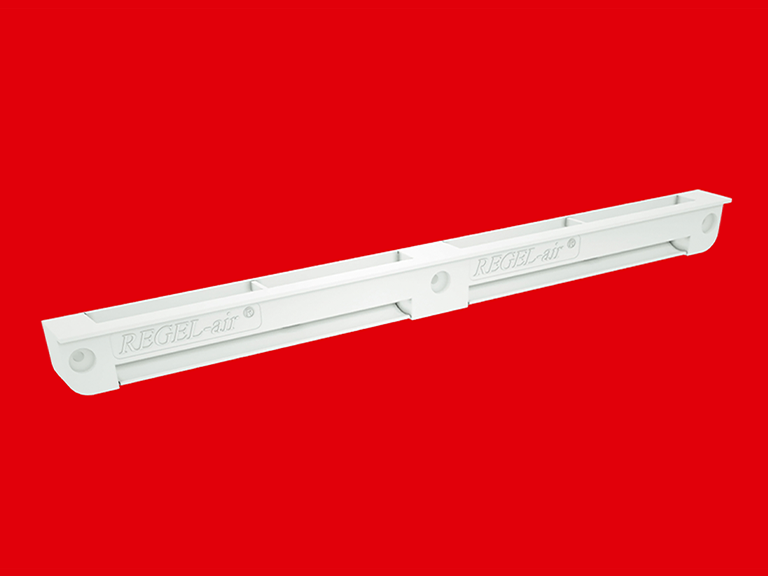

Regel-air® FFLHmax ventilation system – for high air flow rates
The Regel-air® FFLHmax is a self-regulating window rebate vent and a systematic further development of the FFLH Type 24. The FFLHmax, designed for wood and wood-aluminium windows, is available for a range of applications. The ventilation system is suitable for factory installation in new windows and for retrofitting into existing windows.
Go to the system page
Regel-air® FFL-quick ventilation system – for medium air flow rates
The Regel-air® FFL-quick is a self-regulating window rebate vent which is suitable for factory installation but is also ideal for retrofitting. The window rebate vent features two self-regulating flaps which adjust the airflow depending on wind pressure to prevent draughts.
Go to the system page
Regel-air® FFL-uni ventilation system – for medium air flow rates
The Regel-air® FFL-uni is a self-regulating window rebate vent which is suitable for factory fitting but is also ideal for retrofitting. The FFL-uni fits virtually all windows and window types (with the exception of flush-fitting windows). The window rebate vent features two self-regulating flaps which adjust the airflow depending on wind pressure to prevent draughts.
Go to the system page
Regel-air® FFLHA ventilation system – for precisely controlled air flow rates
Regel-air® FFLHA window rebate vent are automatic ventilation systems for wood-aluminium windows. In wood-aluminium windows with a centre gasket in the frame, the Regel-air® FFLHA window rebate vents must be used exclusively as a supply-air device in conjunction with permanently operated, fan-assisted extract ventilation systems.
