Slide vent Type 30 for the FORTE system
Gasket colour:
black
Gasket size:
2.5–3.5 mm
Vent colour:
anthracite
The Regel-air ® slide vent Type 30 for the FORTE system, anthracite – gasket colour: black – 3.1–3.5 mm for PVC window is profile-independent and manually adjustable. The FORTE system consists of 2 sliding ventilators and 1 pair of FFL.
Contents: 1 vents per sales unit, including gasket
Description
Product information " Slide vent Type 30 for the FORTE system"
The Regel-air ® slide vent Type 30 for the FORTE system

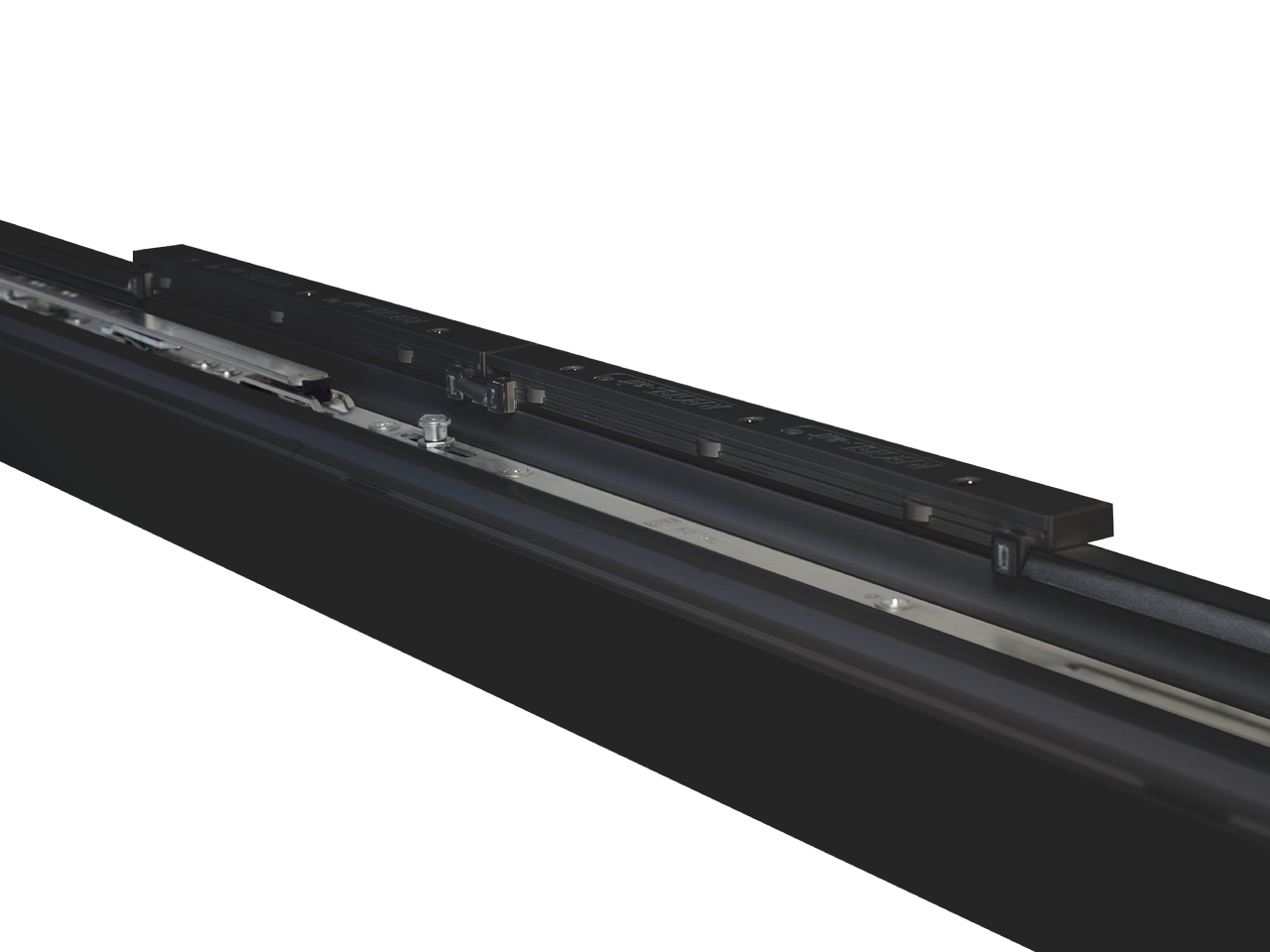

The slide vent, in combination with the window rebate vents FFL, forms the Regel-air ® FORTE ventilation system. It comprises 1 pair (2 units) of manually infinitely adjustable Regel-air ® slide vent SL units and 1 pair of Regel-air ® window rebate vents FFL units with automatic airflow control. As the Regel-air ® FFL system is profile-specific, it must be ordered in addition to the Type 30 sliding vents.
For effective moisture-protection ventilation and to achieve high air flow rates right up to the nominal ventilation rate.
We recommend equipping every room with Regel-air ® ventilation systems. This ensures that the entire flat is reliably ventilated.
Properties
| Achievable air flow rates in the range of 2 to 8 Pa: | 3.0 to 20.0 m³/h and above |
|---|---|
| Air control: | FFL: Automatic, flow-dependent, Slide vent: Manual, continuously variable |
| Contents of the package: | Supplied with fitting materials and a drilling template |
| Dimensions (W x H x D): | 293 x 21 x 9.5 mm (1 sliding vent each) |
| Installation: | Retrofitting, factory-fitted |
| Noise protection achievable (depending on the type of glazing): | On request |
| Resistance to driving rain in accordance with DIN 12208: | Tested in accordance with DIN EN 13141-1, Table 6 |
| Vents per sales unit: | 1 item |
| Width: 1 pair of window rebate vents FFL (=2 fans): | 250 mm |
| Window material: | PVC window |
