Window rebate vent for wood and wood-aluminium windows

Ventilation system Regel-air® FFLHmax

for high air flow rates

Window rebate vents for wood and wood- aluminium window

Ventilation system Regel-air ® FFLHmax

For high air flow rates

View products

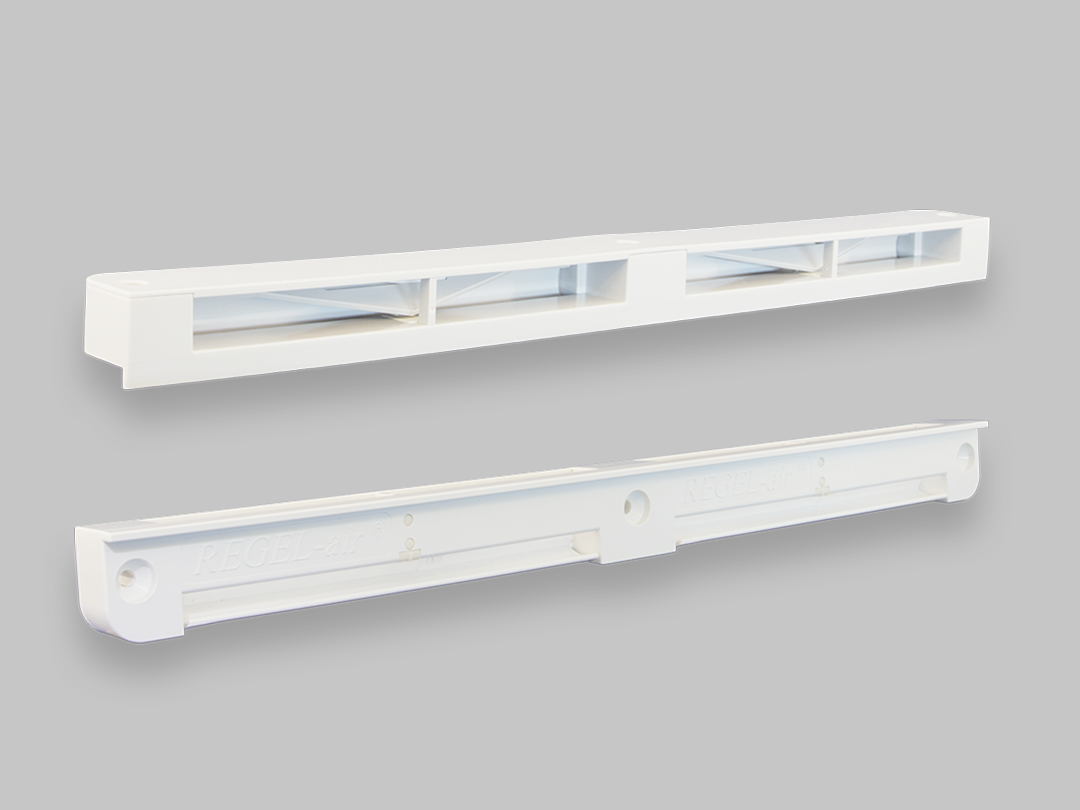

Regel-air ® FFLHmax – window rebate vent for wood and wood-aluminium window s

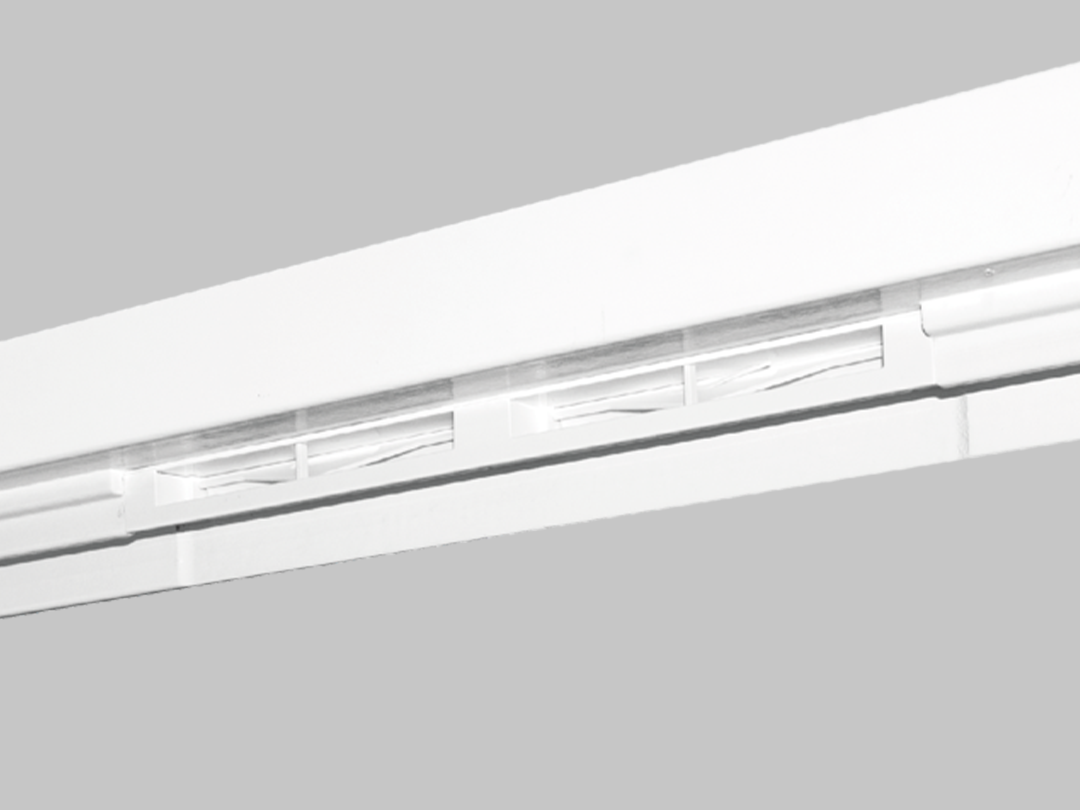

The FFLHmax is a self-regulating window rebate vent and the systematic further development of the FFLH Type 24. The new version utilises the recognised flap technology, which has proven itself over the last 20 years and reacts to wind pressure. Installation is carried out as usual. The ventilation ducts are visible and even easier to clean.

The vents has been successfully tested by an accredited testing laboratory for air flow, driving rain and noise protection. Not only are air flow rates of over 15 m³/h at 8 Pa achievable, but sound insulation levels of 42 dB can also be attained, depending on the combination and installation configuration.

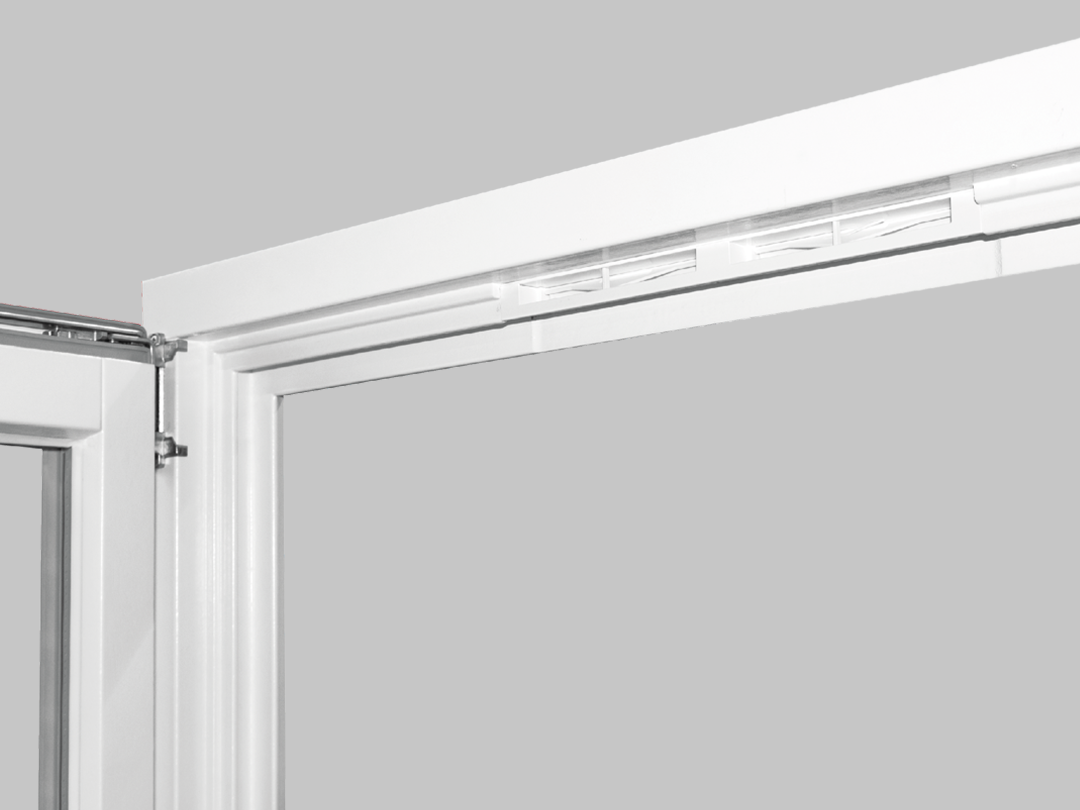

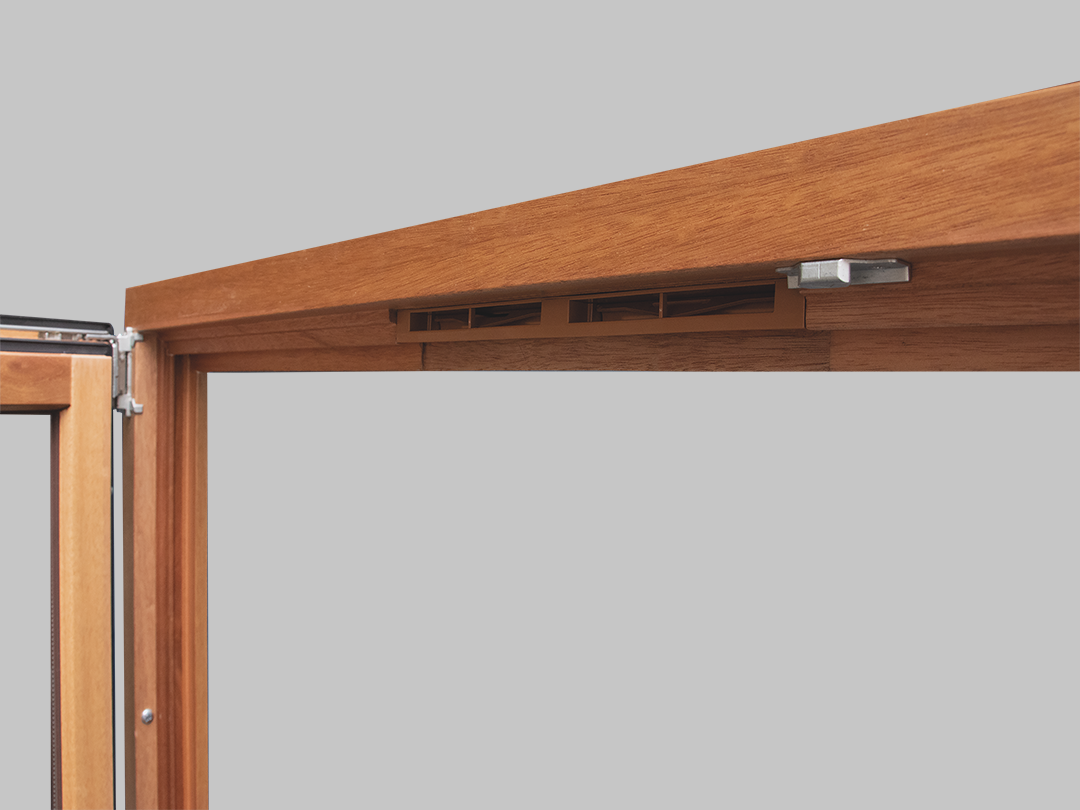

Regel-air ® window rebate vents FFLHmax are available for timber and timber- aluminium window, catering for a range of applications. The ventilation system is suitable for factory installation in new windows and for retrofitting ( retrofitting) into existing timber and timber- aluminium window.

The flaps in the ventilation modules react to wind pressure in exactly the same way as in the FFL ventilation system and close as wind pressure increases.

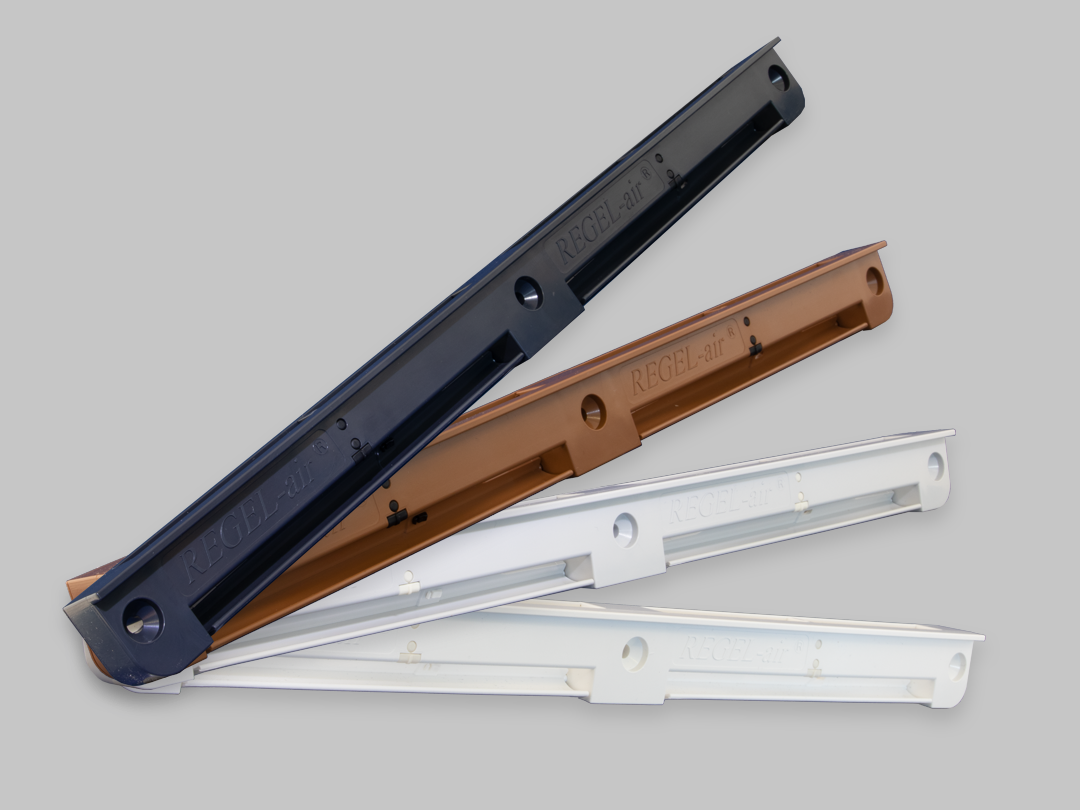

The Regel-air ® window rebate vents FFLHmax is available in white, light grey, clay brown and anthracite.

Reducing energy costs in the long term

Lower humidity = lower heating costs! Ventilation using Regel-air® window rebate vents reduces the relative humidity in the flat.

This has been proven to reduce heating costs. It also prevents mould growth and improves indoor air quality.

Find out more

Technical specifications

Product data sheet Performance data Installation instructions for timber tender document Product video Installation instructions for timber-aluminium

Features

For a reliable minimum air exchange rate to protect against moisture in wood and wood-aluminium windows
To prevent moisture damage and mould growth
For standard and enhanced sound insulation requirements
Purely mechanical operation
No additional power supply required
Air permeability classification in accordance with DIN EN 1026 and DIN EN 12207 4.4, 4.5 and 4.6: class 3 Performance tested in accordance with DIN EN 13141-1
Approved in accordance with EnEV and DIN 1946-6

Areas of application

Vents for moisture control ventilation in new buildings and existing buildings
Ventilation system for retrofitting in existing windows
User-independent and tamper-proof
To prevent and tackle the causes of mould growth
As an external air inlet in conjunction with shaft ventilation or extract air systems
For moisture removal as part of the ‘ cross ventilation’ system, taking into account the principles of building physics
For the combustion air supply of fireplaces
Suitable for both factory installation and retrofitting to existing windows

Home ventilation can be that simple

Find out more

Regel-air® system FFLHmax Type 44

Product data overview Regel-air® window rebate vent FFLHmax Type 44

Suitable for:	All wood and wood-aluminium windows types IV 68 to IV 98
Dimensions of the vent FFLHmax:	290 x 24 x 19 mm (WxDxH)
Air control:	Automatic, flow-dependent
Achievable air flow rates in the range 2 to 8 Pa:	Depending on the vent combination, 1.6 to 15.1 m³/h
Permissible limit value in accordance with DIN EN 12 207-4.4:	At 100 Pa: 9.0 [m³/hm²]
Classification in accordance with DIN EN 1026 and DIN EN 12 207:	Class 3
Resistance to driving rain in accordance with 13141-1:	No water ingress up to 150 Pa
Achievable sound insulation ( noise protection) (depending on the type of glazing):	Up to 42 dB (up to class 4)

How it works and fresh air supply

Find out more

Videos

Go straight to our products in the shop

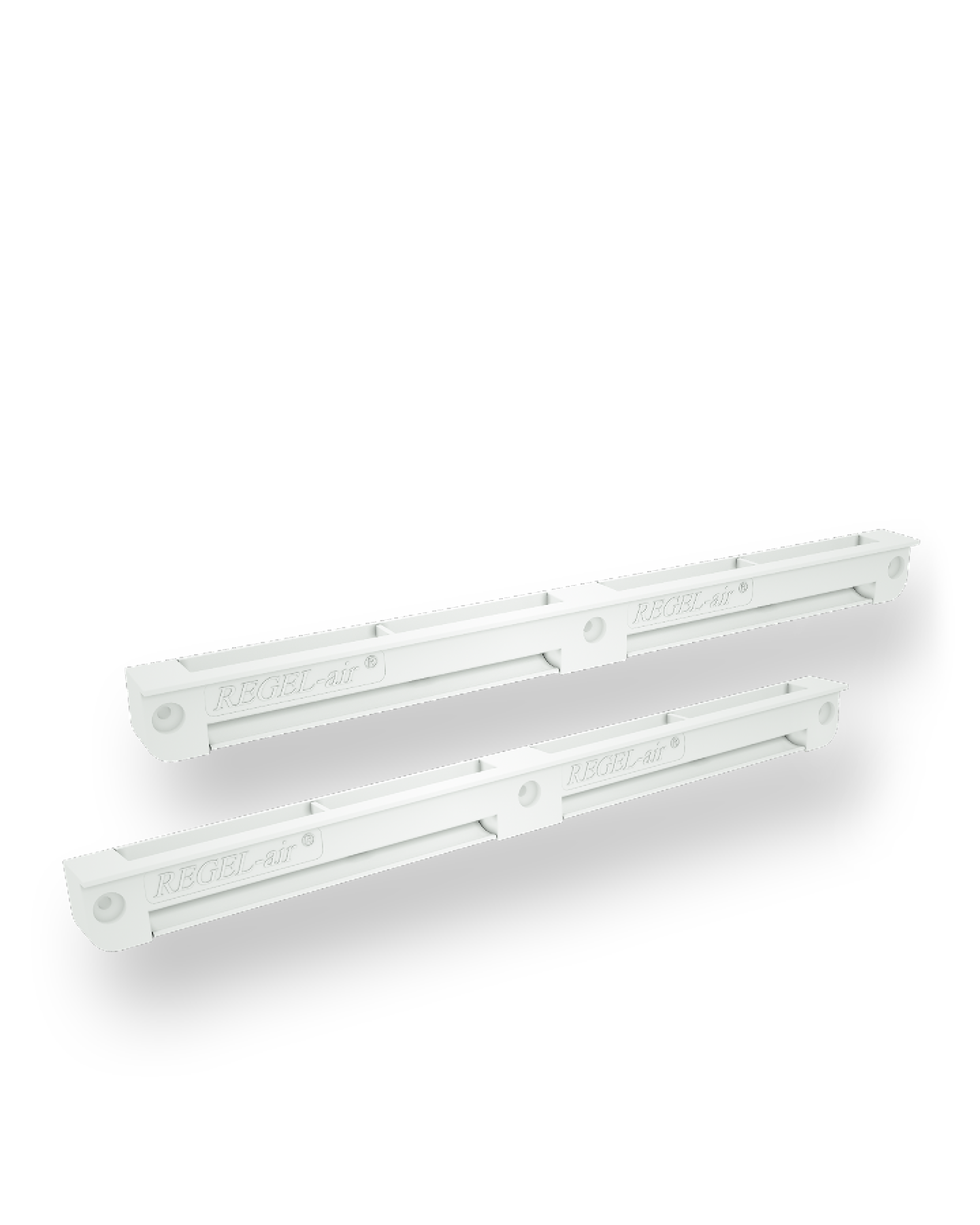

Window rebate vents FFLHmax Type 44, white
