Window rebate vents for PVC, wood and wood-aluminium windows

Ventilation system
Regel-air® FFL-quick

for medium air flow rates

Window rebate vents for PVC – timber and timber- aluminium window

Ventilation system
Regel-air ® FFL -quick

For medium air flow rates.

View the products

Regel-air ® ventilation system FFL -quick

The universal vent for PVC, wood and wood-aluminium windows

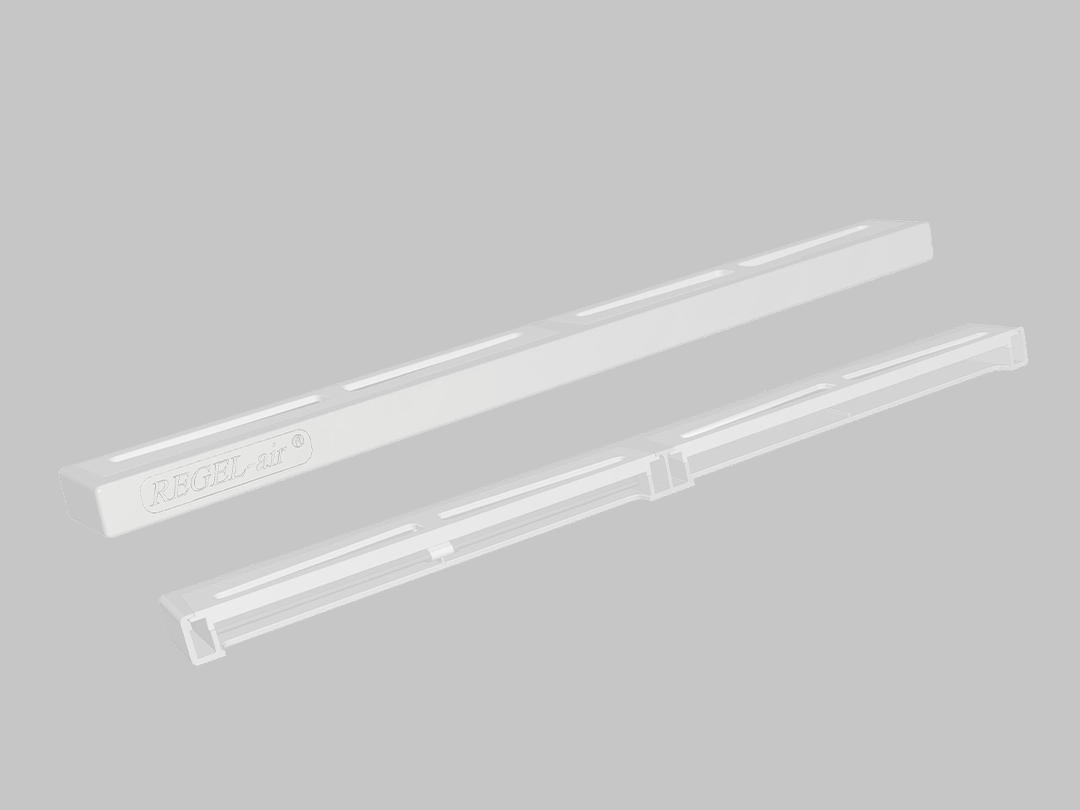

The Regel-air® FFL-quick is a self-regulating window rebate vent, which is suitable for factory installation but is also ideal for retrofitting. The FFL-quick is suitable for PVC, wood and wood-aluminium windows (excluding flush-fitting windows). The window rebate vent features two self-regulating flaps, which regulate the airflow depending on wind pressure to prevent draughts.

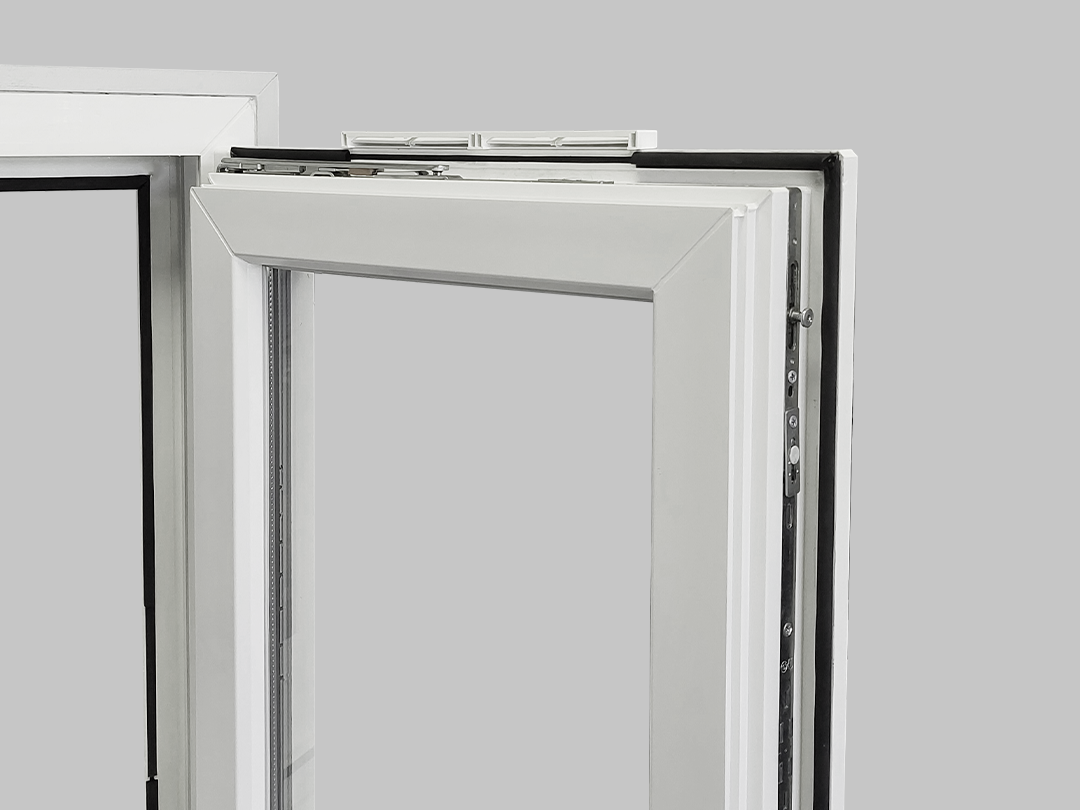

The Regel-air® FFL-quick stands out for its straightforward installation – it is simply stuck onto the window sash overlap.

Using the FFL-quick enables controlled air exchange and reliable dehumidification without draughts. To achieve this, the entire flat should be taken into account.

Reducing energy costs in the long term

Lower humidity = lower heating costs! Ventilation using Regel-air® window rebate vents reduces the relative humidity in the flat.

This has been proven to reduce heating costs. It also prevents mould growth and improves indoor air quality.

Find out more

Technical specifications

Product data sheet Performance data Installation instructions tender document Installation video

Features

Window ventilation system for moisture control
Purely mechanical operation
User-independent and tamper-proof
No additional power supply required
Air permeability classification in accordance with DIN EN 1026 and DIN EN 12207 class 3
Driving rain proof in accordance with DIN EN 1027 and 12208 up to 600 Pa
Performance tested in accordance with DIN EN 13141-1
Approved in accordance with EnEV and DIN 1946-6

Areas of application

As a ventilation system for moisture control in new and existing buildings
To prevent and tackle the causes of mould growth
As external air inlets in conjunction with shaft ventilation or exhaust air systems
For moisture removal as part of the cross ventilation (moisture control system), taking into account the principles of building physics
Suitable for the combustion air supply of fireplaces

Home ventilation can be that simple

Find out more

Regel-air ® vent System FFL -quick Type 66

Product data overview Regel-air® vent system FFL-quick Type 66

Ventilation system suitable for:	PVC, wood and wood-aluminium windows
Dimensions W x H x D	269 x 15.2 x 22 mm
Air control	Automatic, flow-dependent
Achievable air flow rates	2 to 12.9 m³/h depending on pressure differential and window type
Performance tested	DIN 13141-1
noise protection achievable (depending on glazing type)	Up to 42 dB

How it works and fresh air supply

Find out more

Videos

Go straight to our products in the shop

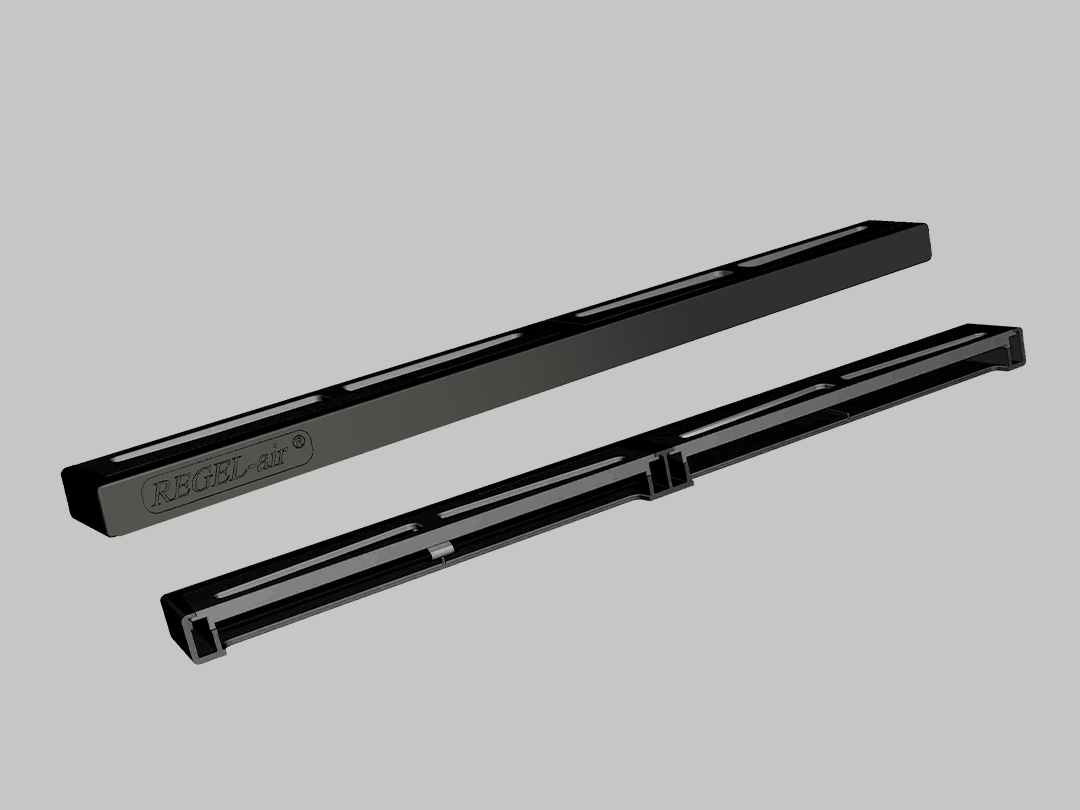

Vent colour

Window rebate vents FFL -quick Type 66

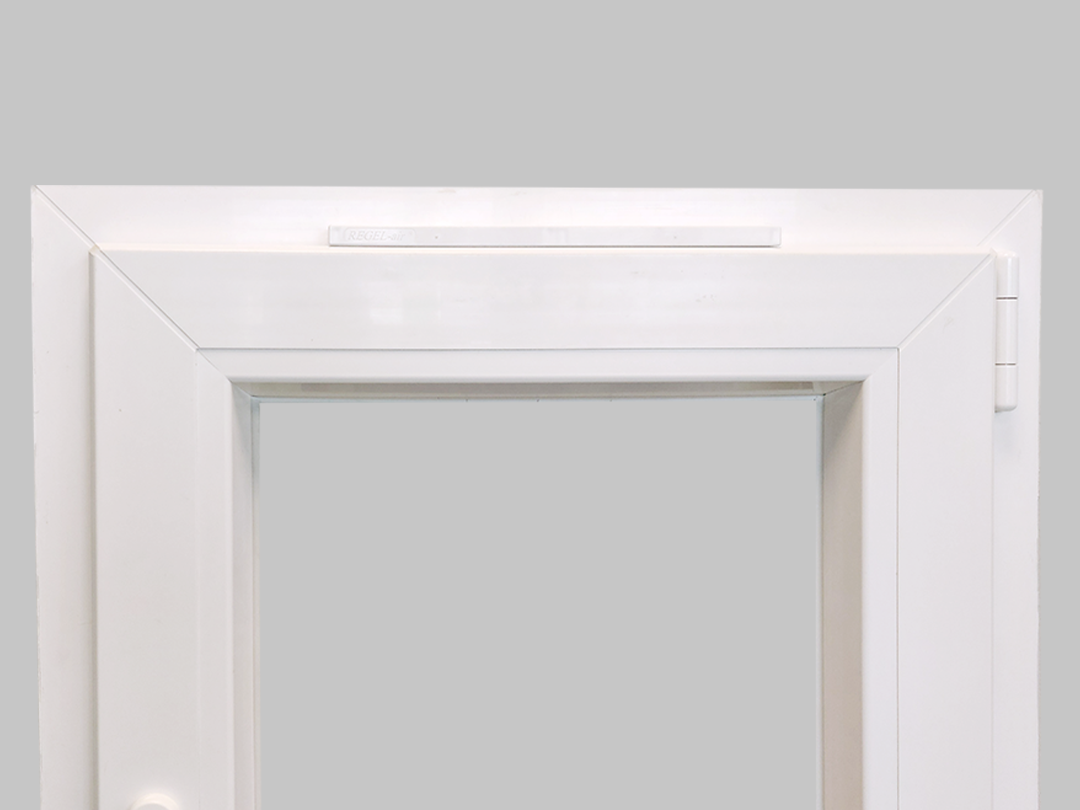

The Regel-air ® FFL -quick is ideal for the retrofitting and is fitted horizontally at the top. Installation is very straightforward thanks to the template supplied.

Please log in to see prices

RegelDichtung by Regel-air ®

Overflow seals ensure that room air connection, and in many cases there is no need to shorten the doors or fit a grille.

Please log in to see prices

Sample case

The Regel-air ® sample case is ideal for use during on-site customer appointments to help determine the correct window-rebate ventilator.

Please log in to see prices
