Ventilation system
Regel-air® FFL-smart

for flexible air flow rates

Regel-air® ventilation system FFL-smart – for flexible air flow rates

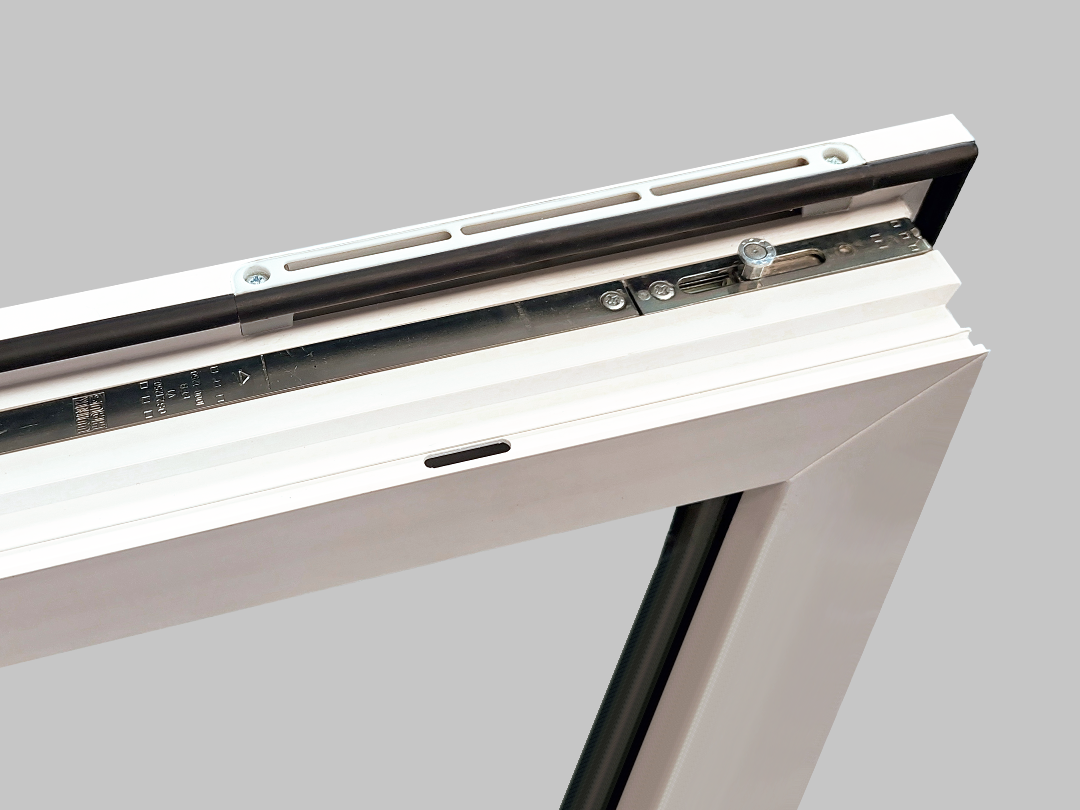

The Regel-air® FFL-smart is a self-regulating window rebate vent that is milled into the sash overlap of the PVC window. The integrated return and damping spring ensures silent and gentle closing of the damper and, in special cases (e.g. arched windows or narrow windows), also allows for vertical installation.

The use of the FFL-smart ensures controlled dehumidification without draughts and prevents mould damage. Thanks to its excellent air flow rates and sound insulation properties, it is also suitable for demanding applications.

Maximum flexibility in production

The FFL-smart has been specially developed to meet the demands of modern window production with maximum efficiency. It fits into any standard PVC window and can be seamlessly integrated into existing processes.

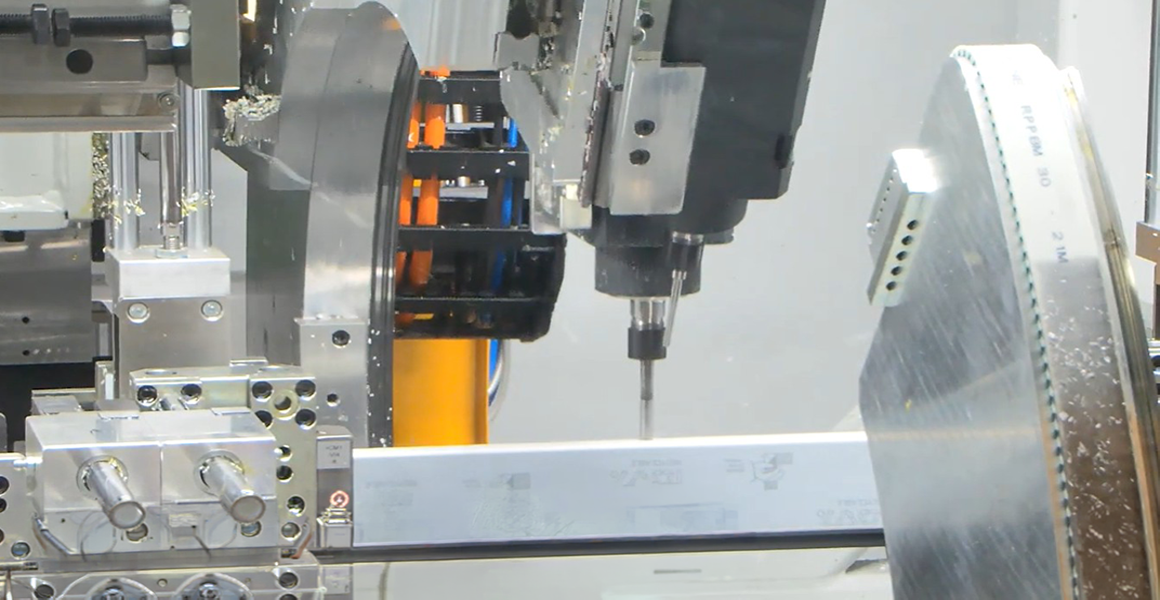

The FFL-smart process video demonstrates how easily the vent can be incorporated into window production on the machining centre.

Watch the video

Stop gasket Technical specifications

Product data sheet Air permeability values Sound insulation values Installation instructions tender document Product video

Centre gasket Technical specifications

Product data sheet Air permeability values Sound insulation values Installation instructions tender document Product video

Features

Window ventilation system for moisture control
Purely mechanical operation
User-independent and tamper-proof
No additional power supply required
Performance tested in accordance with DIN EN 13141-1
Compliant with EnEV and DIN 1946-6

Areas of application

As a ventilation system for moisture control in new buildings and also during the modernisation of buildings
To prevent and tackle the causes of moisture damage and mould growth
As external air inlets in conjunction with shaft ventilation or extract air systems
For moisture removal as part of the cross ventilation (moisture control system), taking into account the principles of building physics
Suitable for the combustion air supply of fireplaces

This is how simple home ventilation can be

Impressions/Pictures

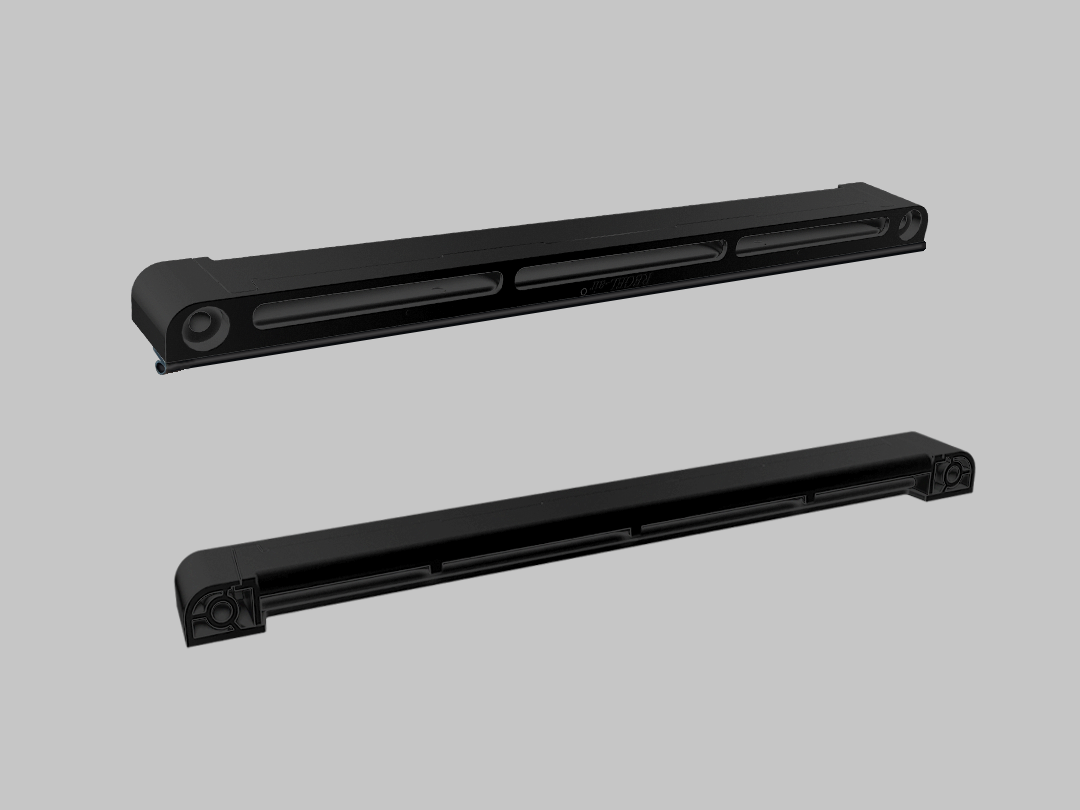

FFL-smart anthrazit mit Dichtung 1080x810

Product data overview Regel-air® window rebate vent FFL-smart Type 100

Ventilation system suitable for:	All standard PVC windows with a minimum 12 mm reveal (without reinforcement in the sash overlap)
Dimensions W x H x D in mm:	200 x 20 x 11
Air control:	Automatic, flow-dependent
Achievable air flow rates in the range 2 to 8 [Pa]:	Depending on the vent combination and window system, 2.7 to 16.1 m³/h
Achievable noise protection (depending on the type of glazing):	Up to 45 dB (up to class 5)
Special notes:	Supplied with fitting materials
