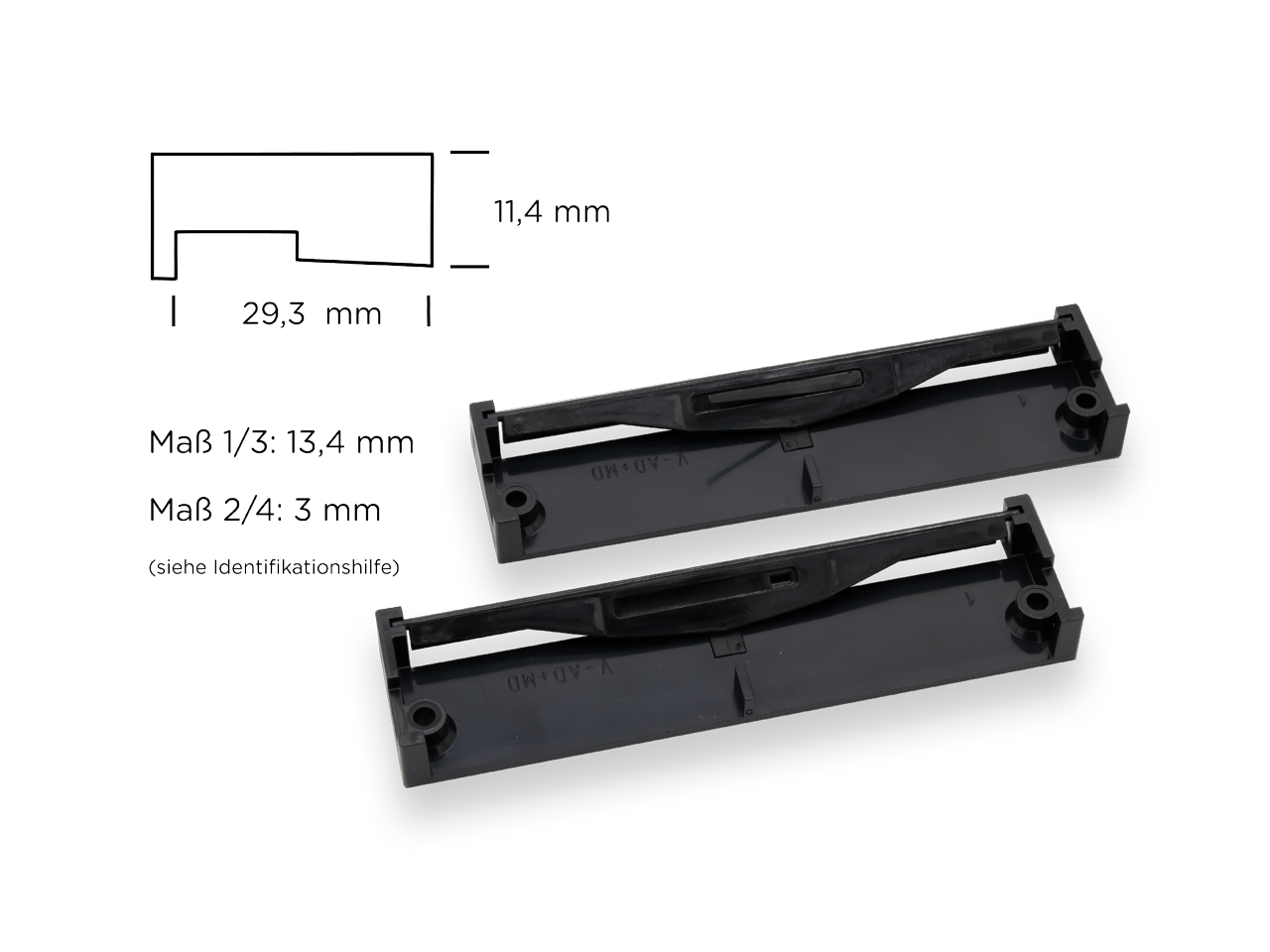

Window rebate vents FFL Type 16 RF
Contents: 2 vents per sales unit, including gasket
Product information " Window rebate vents FFL Type 16 RF"
The Regel-air ventilation system ® FFL Type 16
Our Regel-air ventilation system FFL Type 16 is an automatic, self-regulating window rebate vents. It is made of PVC and features automatic airflow limitation. This makes it very easy to prevent damp and mould damage. The pressure difference prevailing on the building is utilised to ensure automatic air exchange and the supply of fresh air to all rooms. Fresh outside air simply flows into the interior of the room through the Regel-air ® FFL window rebate vents.
To prevent draughts, the ventilation flaps automatically close when wind pressure increases. Controlled air exchange is guaranteed when the system is installed correctly.
The FFL ventilation systems operate on a purely mechanical principle. No power supply is required for this energy-efficient ventilation.
We recommend fitting every room with Regel-air ® ventilation systems. This ensures that the entire flat is reliably ventilated.
Suitable for the following window systems
Accord: Contur 7.0 MD, Contur 7.0 AD, Contur 7.0 MD Alu-Dual, Contur 7.0 AD Alu-Dual
Aluplast: Ideal 1000 50 AD, Ideal 2000 60 AD, Ideal 3000 60 MD
Brügmann: Series 73 AD, Series 73 MD, Series 82 MD/AD, bluEvolution 73, bluEvolution 82
Dimex: Contour 70 AD (see ACCORD Contour), Contour 70 MD (see ACCORD Contour), Elegance 80 AD
Dobroplast: Avantgarde 7000, Avantgarde 9000, P-Line
Inoutic: Exclusive 60 MD
LB-Profile: PAD 60 AD, PCD 70 AD, PMD 60 MD, PCD 70 MD, LB.Compact + Compact 2 & 5, 60 AD, LB.Classic 60 AD, LB.Classic xt 107 AD, LB.Contour 70 AD, LB.Concept 80 AD, LB.Concept 80 MD
Osmo: Signum 25 58 AD
Plastmo: AD
Plus-Plan (Plustec): Plustec 60 AD
Reckendrees: Bellevue 70 AD, 2000 70 AD, SL 76 AD/MD, SL 82 AD/MD
Rehau: S 730 60 AD
Salamander: bluEvolution 82 AD/MD, greenEvolution 76 AD/MD, Streamline 76 MD, AD Alu
Stöckel: EcoStep 8.0 AD, Twinstep 8.0 MD, Ecostep Design (BF) 7.0 AD
Tryba: T 75 (MD)
Veka: Softline 58 AD, Softline 58 MD, Softline 70 AD/MD, Topline 70 AD/MD, Swingline 70 AD, Softline 76 AD/MD, Alphaline 90 MD, Softline 82 AD/MD, Efectline 76, ARTLINE 82 MD
Schüco: SI 82 MD, CT 70 MD, AS 60 AD, CT 70 AD, Living 82 AD, Living 82 MD
| Achievable air flow rates in the range of 2 to 8 Pa: | Depending on the vent combination (at least 1 pair), 3.0 to 7.8 m³/h |
|---|---|
| Air control: | Automatic, flow-dependent |
| Classification in accordance with DIN EN 1026 and DIN EN 12207: | Class 3 |
| Contents of the package: | Supplied with all the necessary seals and fitting materials |
| Installation: | Retrofitting, factory-fitted |
| Noise protection achievable (depending on the type of glazing): | Up to 42 dB (up to Class 4) |
| Permissible limit value in accordance with DIN EN 12207-4.4: | At 100 Pa: 9.00 m³/hm² |
| Resistance to driving rain in accordance with DIN 12208: | No water ingress up to a maximum test pressure of 600 Pa |
| Vents per sales unit: | 2 pieces |
| Wide single fans: | 125 mm |
| Width: 1 pair of window rebate vents FFL (=2 fans): | 250 mm |
| Window material: | PVC window |
