Window rebate vents FFL -smart Type 100
Gasket colour:
black
Vent colour:
white

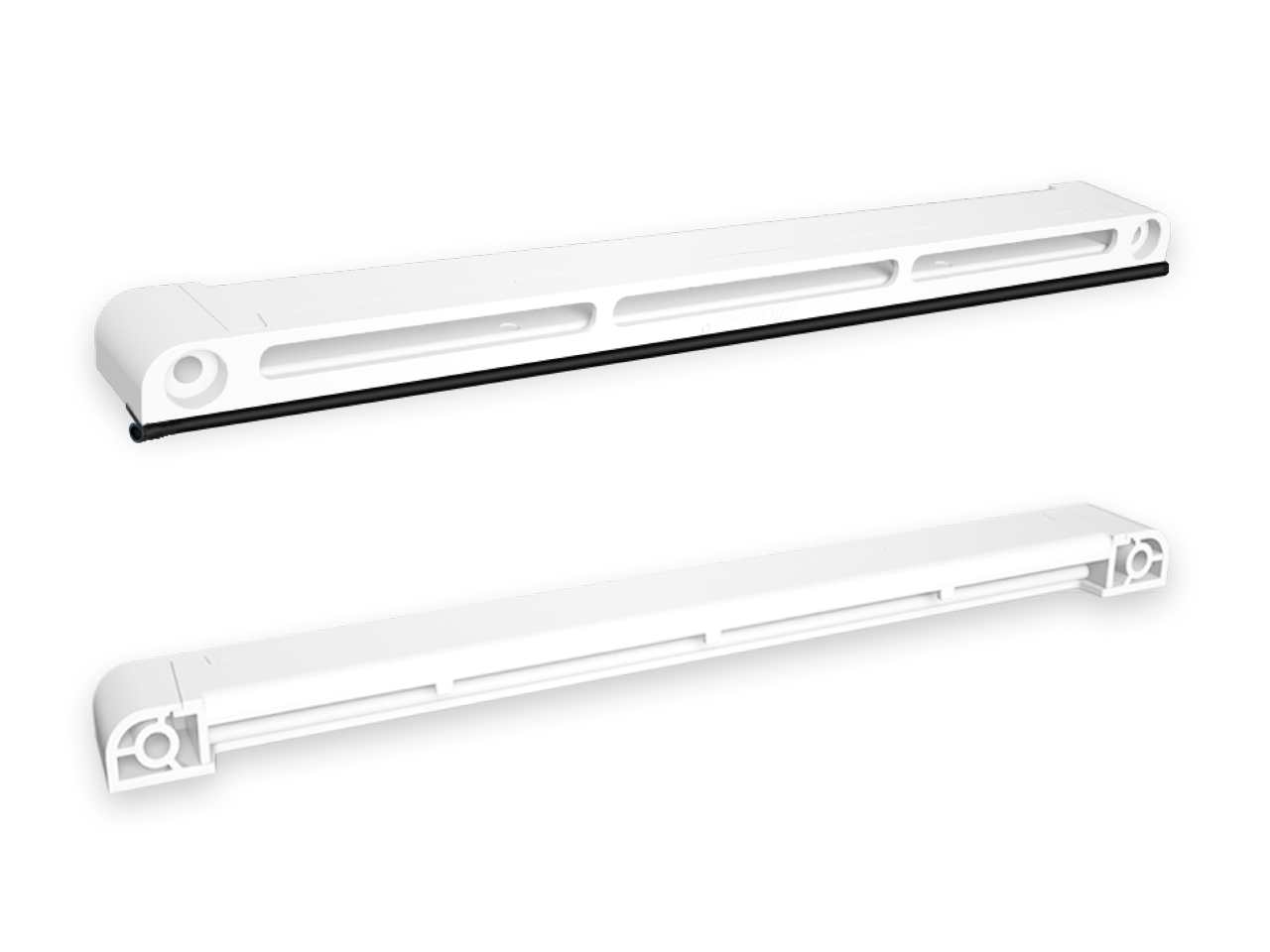

The Regel-air ® FFL -smart is a self-regulating window rebate vents that is milled into the sash rebate of plastic windows.
Product number:
100w.2
Contents: 1 vents s per sales unit
Description
Product information " Window rebate vents FFL -smart Type 100"
The Regel-air ventilation system ® FFL -smart Type 100

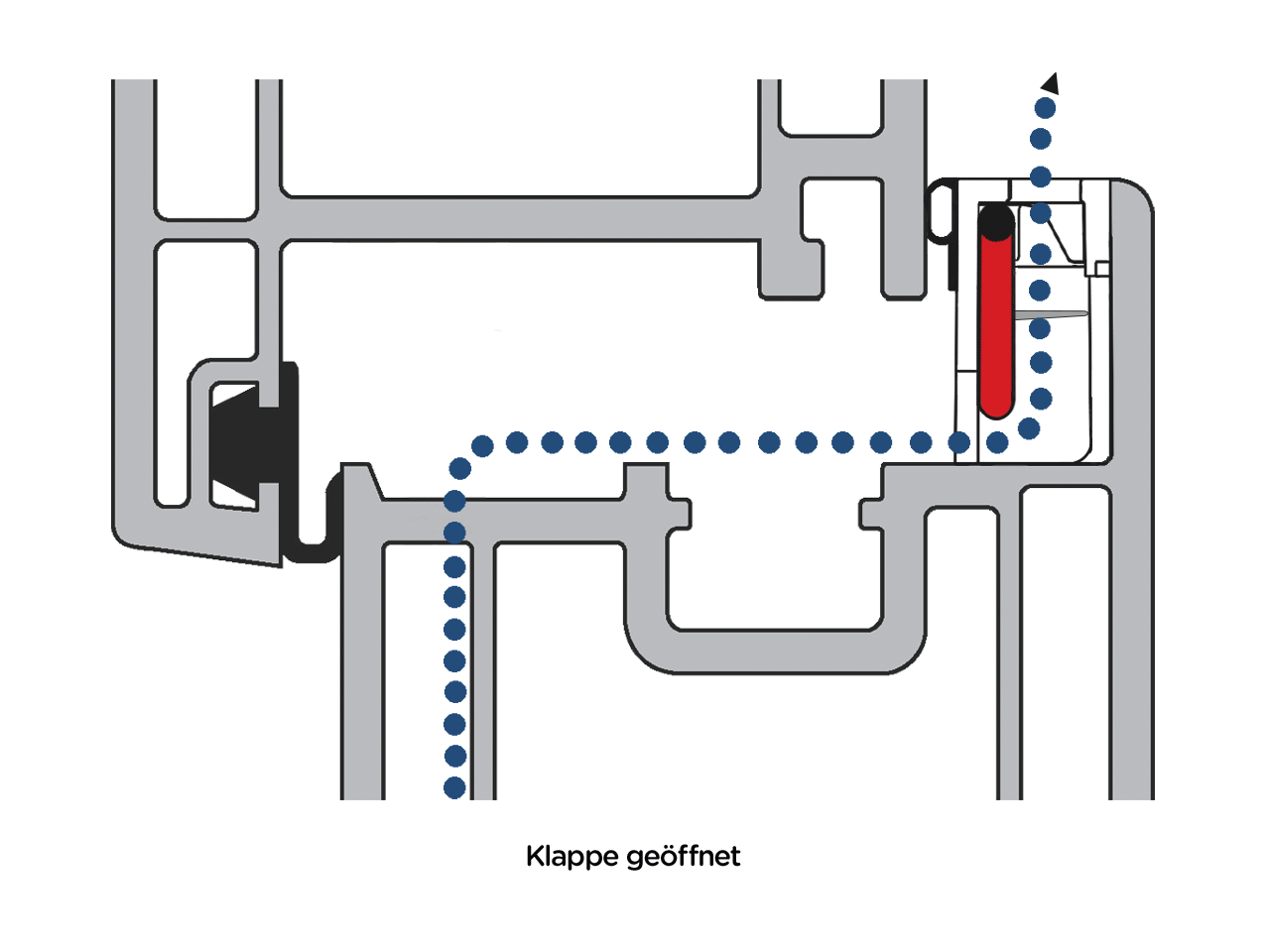

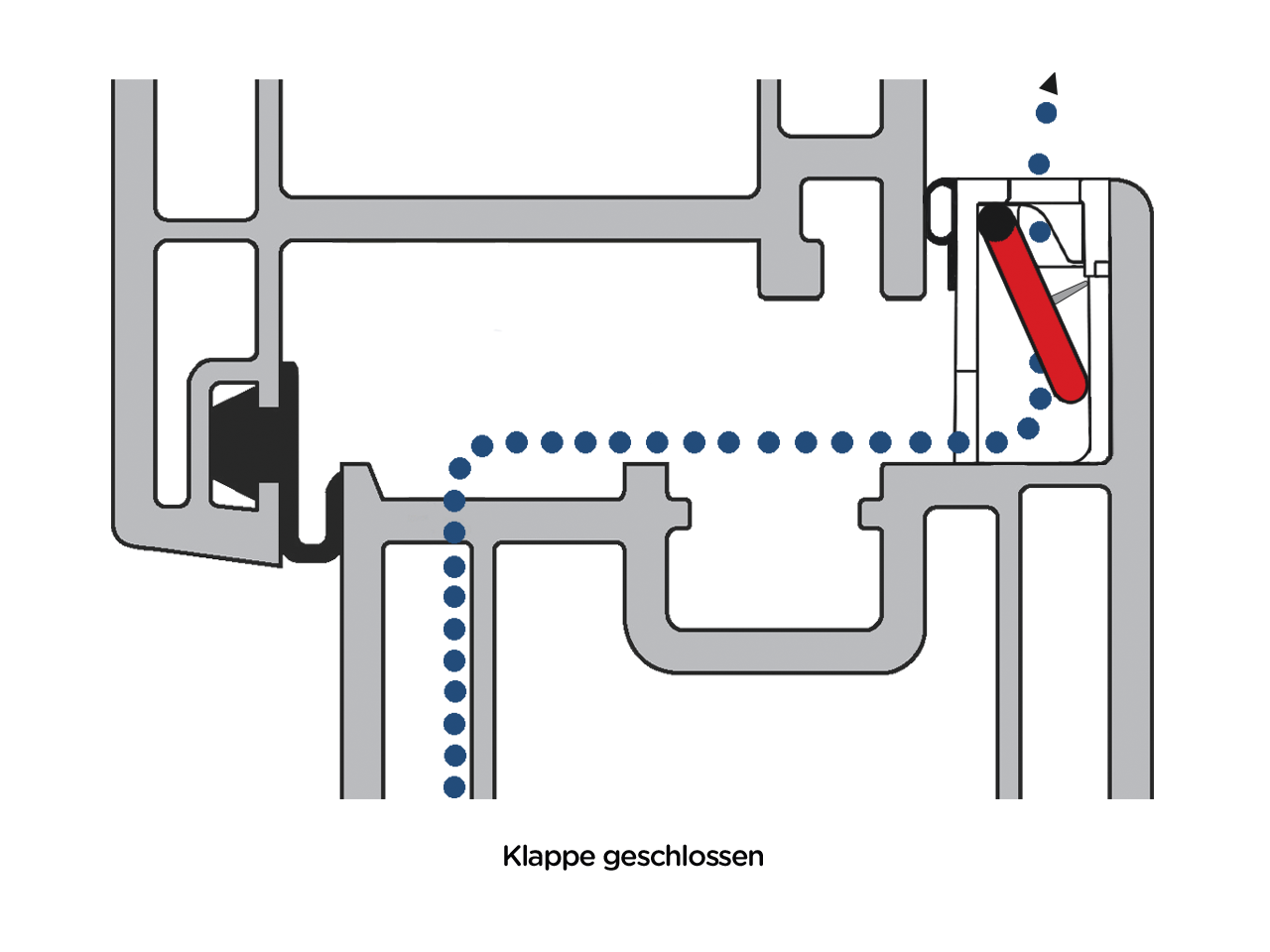

The Regel-air ® FFL -smart is a self-regulating window rebate vents that is milled into the sash overlap of plastic windows. An integrated return and damping spring ensures that the flap closes quietly and gently and also allows for vertical installation in special cases – such as with arched windows or narrow windows.
The FFL-smart enables controlled dehumidification without draughts and provides reliable protection against mould growth. Thanks to its excellent air flow rates and sound insulation properties, it is ideally suited to applications with high requirements.
We recommend fitting every room with Regel-air ® ventilation systems. This ensures that the entire flat is reliably ventilated.
Properties
| Air control: | Automatic, flow-dependent |
|---|---|
| Contents of the package: | Supplied with fitting materials |
| Dimensions (W x H x D): | 200 x 11 x 20 mm |
| Feasible air flow rates: | Depending on the vent combination and window system, 2.7–16.1 m³/h |
| Gasket colour: | black, light grey, papyrus white, silver-grey |
| Installation: | Retrofitting, factory-fitted |
| Noise protection achievable (depending on the type of glazing): | Up to 45 dB (sound insulation class 5) |
| Performance-tested: | DIN 13141-1 |
| Resistance to driving rain in accordance with DIN 12208: | No water ingress up to 150 Pa |
| Vent colour: | white, anthracite |
| Vents per sales unit: | 1 item |
| Window material: | PVC window |
| Window type: | PVC window with a minimum 12 mm reveal (without reinforcement in the sash overlap) |
Video
1
Documents
1
FFL-smart - How an intelligent window rebate vent automatically regulates the air flow
March 12, 2026
How can fresh air be reliably supplied to a room without wasting energy or causing inconvenience to the user?
