Type 25 top-mounted ventilator for the PLUS system, white
Contents: 1 vents s per sales unit
Product information "Type 25 top-mounted ventilator for the PLUS system, white"
The Regel-air ® Type 25 cross-ventilation fan for the PLUS system
The Regel-air ® PLUS ventilation system comprises self-regulating window rebate vents FFL with automatic airflow limitation, as well as a manually adjustable ÜL cross-ventilation fan for increasing the air flow rate. The Regel-air ® window rebate vents FFL are differential pressure-controlled fresh air inlets (ALD) and feature a suitable control variable in accordance with DIN 1946-6. The Regel-air ® overflow ventilator ÜL is manually adjustable and lockable in accordance with DIN 1946-6.
As the Regel-air ® FFL system is profile-specific, it must be ordered in addition to the Type 25 cross-ventilation unit.
The minimum air change rate required under the EnEV can be achieved by using Regel-air ® window ventilators.

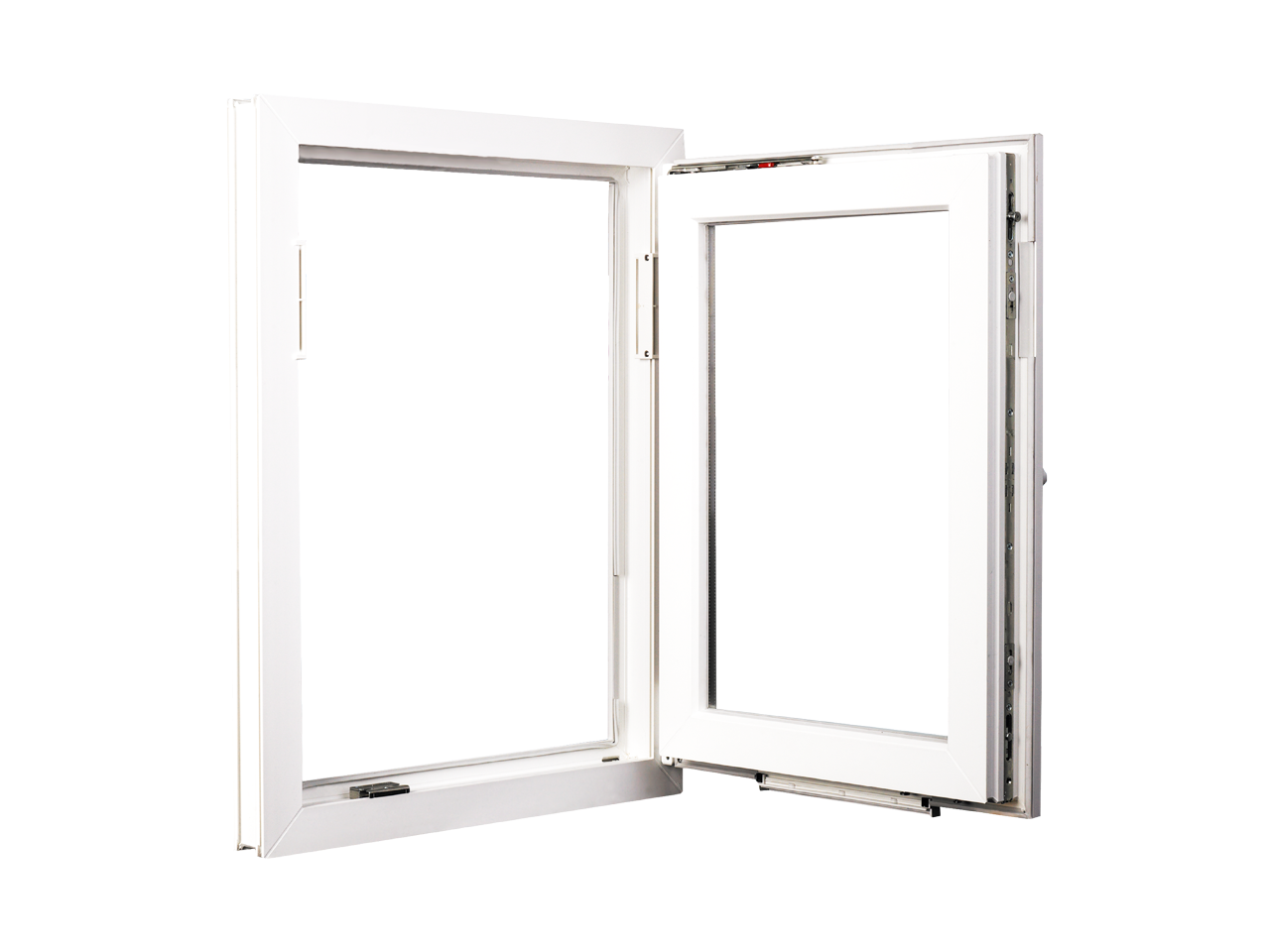

We recommend equipping every room with Regel-air ® ventilation systems. This ensures that the entire flat is reliably ventilated.
| Achievable air flow rates in the range of 2 to 8 Pa: | Depending on the vent combination, FFL and ÜL, 3.0 to 16.0 m³/h |
|---|---|

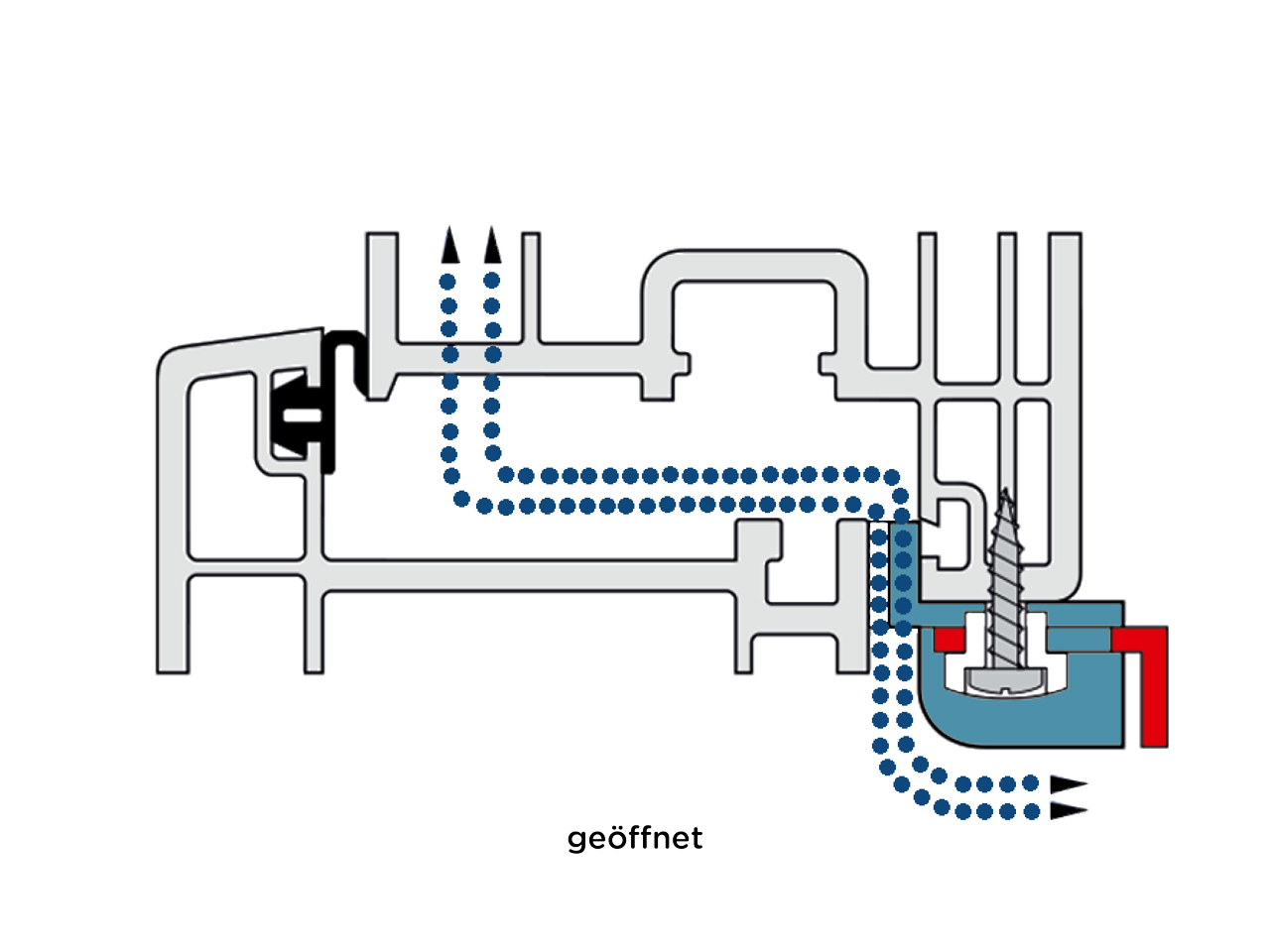

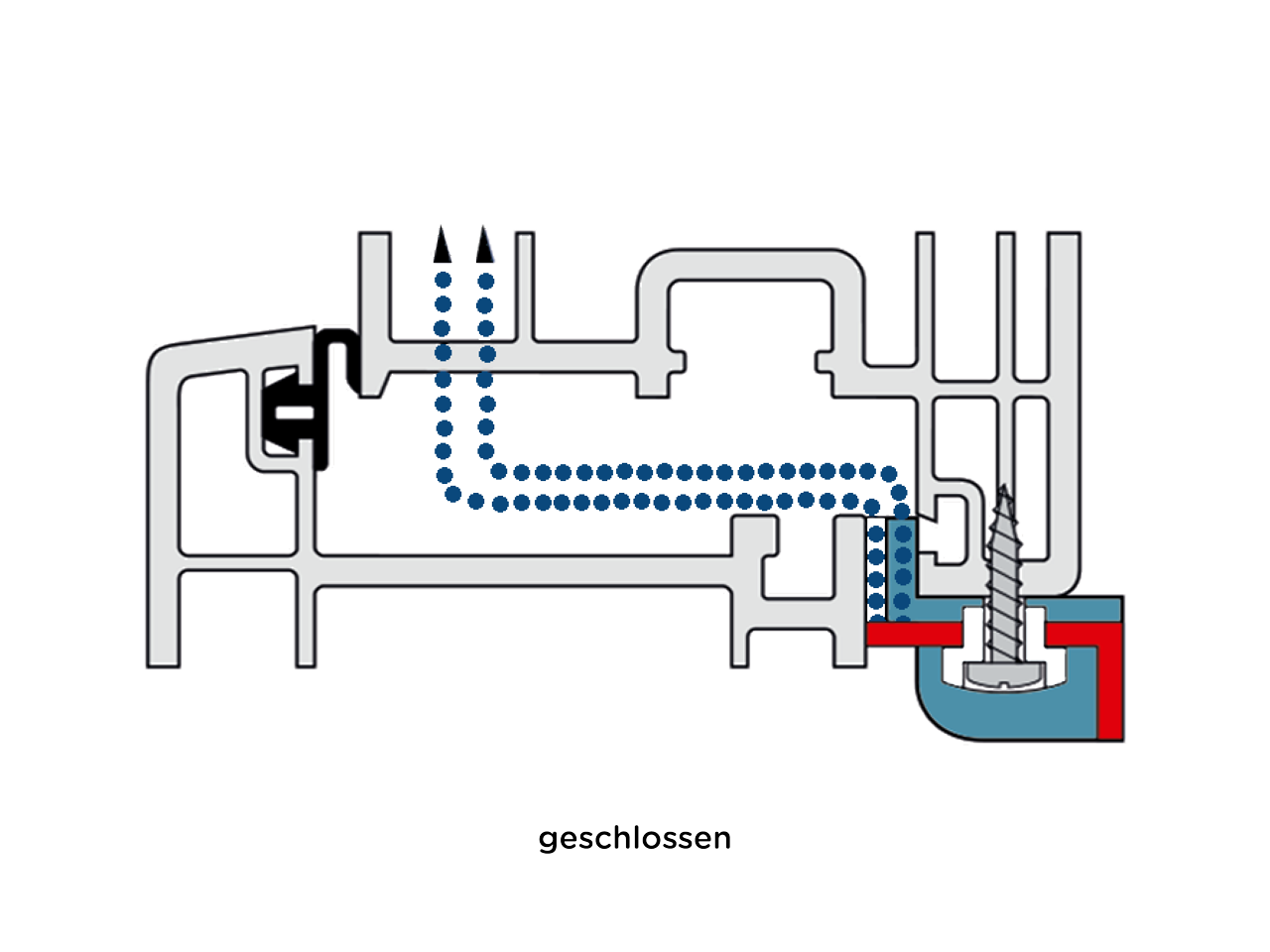

| Air control: | FFL: Automatic, flow-dependent, Top-mounted extractor fan: Manual, infinitely variable |
| Contents of the package: | Supplied with fitting materials and a drilling template |
| Dimensions (W x H x D): | 265 x 25 x 14 mm (external dimensions) |
| Installation: | Retrofitting, factory-fitted |
| Noise protection achievable (depending on the type of glazing): | Up to 40 dB (with the upper limit open) |
| Resistance to driving rain in accordance with DIN 12208: | No water ingress up to a maximum test pressure of 600 Pa |
| Special notes: | When using Regel-air ® or Regel-air ® window rebate vents without the Regel-air , frame inlet seals are required! |
| Vents per sales unit: | 1 item |
| Width: 1 pair of window rebate vents FFL (=2 fans): | 250 mm |
| Window type: | All PVC window models as per our model list |
